Industrial 5G Router Robustel R5020-A Lite
The Robustel R5020-A Lite is a compact industrial router that makes high-speed 5G connectivity accessible. It is designed for applications requiring fast data transfer and low latency, such as in the IoT sector. With full support for 5G networks and backward compatibility with 4G LTE and 3G standards, it provides a stable and flexible foundation for modern digital infrastructure.
Robustel R5020 Lite Use Cases
- In-Vehicle Connectivity: The router provides a secure 5G backbone for emergency services and corporate fleets. The R5020-Lite enables reliable connections to onboard computers and camera systems. Furthermore, the RCMS platform offers centralised management of updates, diagnostics, and overall device operation.
- 5G Backup for SD-WAN: By supplementing an SD-WAN solution with affordable 5G connectivity, you gain a reliable backup for critical systems. External device installation helps maximise signal quality and ensures a more stable connection even in demanding conditions. Centralised monitoring and remote updates effectively reduce operational risks and the costs of service callouts.
- High-Speed Industrial IoT: Deploying a 5G backbone enables the fast connection of robotics, video surveillance, telemetry, and other data-intensive applications in manufacturing plants. Compared to building optical fibre infrastructure, this solution offers significantly faster implementation while simplifying the mass management of security and updates.
Connectivity and Hardware

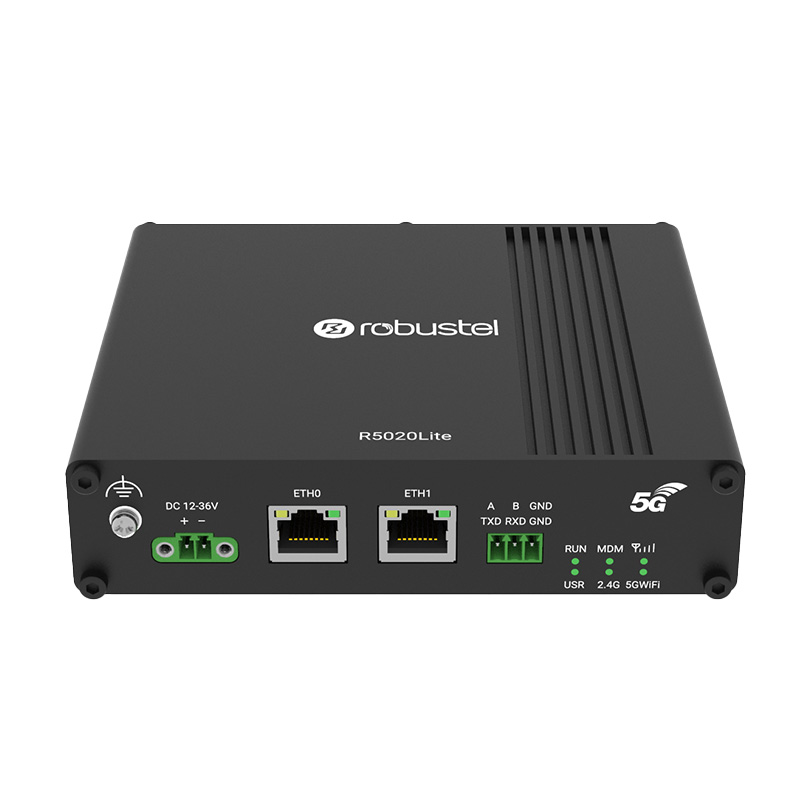

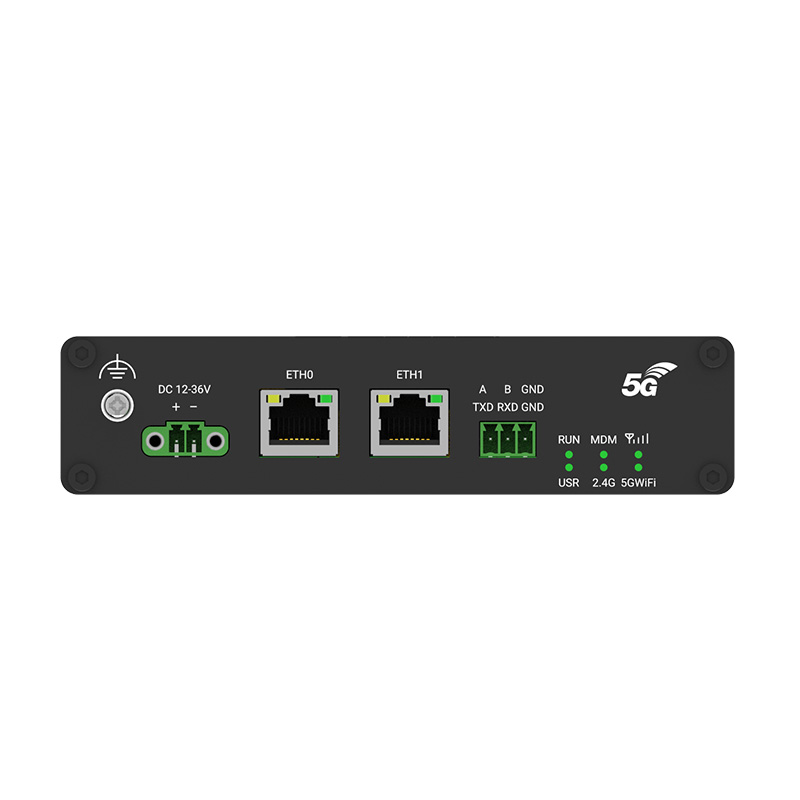

The Robustel R5020 Lite features a port RS-232/485 two Gigabit Ethernet ports for fast wired connections, integrated Wi‑Fi supporting 802.11 a/b/g/n/ac standards, and two SIM card slots ensuring connection redundancy (failover). The robust metal housing allows for reliable operation in a temperature range from –25 °C to +70 °C.
Product Video
The product video provides information about the features of the Robustel R5020 Lite 5G router and presents specific use cases.
RobustOS Operating System
Like other Robustel models, the R5020 Lite utilizes the RobustOS system. Built on Linux, it excels in stability and security. The intuitive interface enables quick configuration, while SDK support opens the door to integrating custom applications and features tailored to your project.
Cloud Management with RCMS
Another advantage is the RCMS cloud platform, designed to work seamlessly with RobustOS to fully unlock the potential of Robustel products. It provides operators with advanced tools for monitoring, managing, and diagnosing network devices, thereby helping to reduce operational overhead. Furthermore, it allows monitoring of mobile data usage, signal strength, and current network connection status for individual devices.
Key Features:
- Global 5G / 4G / 3G cellular network support
- 2× Gigabit Ethernet port (WAN/LAN)
- Dual SIM support for maximum connection reliability
- Advanced VPN security: IPsec, OpenVPN, WireGuard, and more
- Wi‑Fi supporting 802.11 a/b/g/n/ac standards
- Compact and durable metal housing
- Wide input voltage range (9 to 36 V DC)
- Wall or DIN rail mounting
- Weight: 475 g
- Dimensions: 32 × 115 × 136 mm
- Operating temperature: –25 °C to +70 °C
Package Contents:
- 1× Robustel R5020 Lite 5G router
- 1× DIN rail mounting kit
Ethernet cable and power supply are not included.
SECTRON recommends purchasing the following accessories:
AM-RT-ETH150-CAT5E - Ethernet cable CAT5e, RJ45/RJ45, grey, 1.5m
AM-RT-FPOWR - Power supply 12V / 1A, L=1.4m.-without connector, free end
Technical specifications can be found in the attached datasheet.
