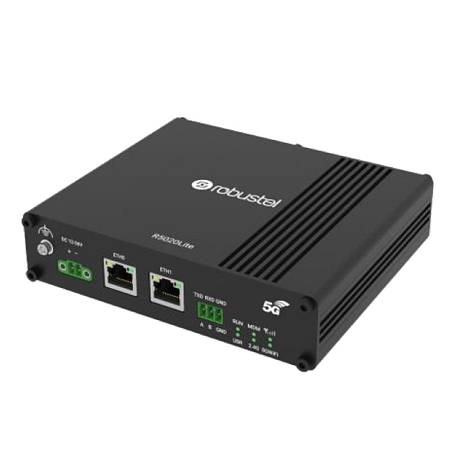

Robustel 5G Router R5020 Lite
The competitively priced Robustel R5020 Lite is a high-performance 5G IoT router supporting 5G, 4G, and 3G mobile networks. The device is fully compliant with the 3GPP Release 16 standard and is designed for demanding applications such as industrial automation, autonomous robotics, CCTV systems, and remote machine control. The router runs the secure RobustOS5 operating system, offering extensive networking features, a high level of security, and easy configuration.
Remote Management and Diagnostics via RCMS Cloud
A major advantage of the router is its full support for the RCMS (Robustel Cloud Management System) cloud platform. This cloud service is designed specifically to work with the RobustOS operating system, unlocking the full potential of Robustel devices. It enables network administrators to efficiently monitor, manage, and diagnose devices remotely, significantly reducing operating costs. The interface makes it easy to track signal strength, current network status, and overall mobile data usage.
Connectivity Backup (Failover) and Secure VPN
The Robustel R5020 Lite industrial 5G router enables configuration of a primary internet connection via Ethernet or Wi-Fi, with automatic switchover to 4G/5G in the event of an outage (failover). This ensures uninterrupted operation for retail locations, offices, and manufacturing facilities, with sufficient bandwidth for multiple users. For secure integration with corporate infrastructure, the router supports encrypted IPsec, DMVPN, and OpenVPN protocols.
Hardware Features and Serial Ports
The router is designed to meet a wide range of industrial requirements. It offers versatile physical connectivity:
- 2× Gigabit Ethernet ports for high-speed wired connections
- 4× SMA antenna connectors (for 5G/4G) and 2× RP-SMA connectors (for Wi-Fi)
- 2× Mini SIM slots for mobile operator backup
- RS-232 or RS-485 serial interface for communication with industrial sensors and PLCs
Key Features:
• Global 5G/4G/3G cellular connections
• Supports Ethernet, WiFi 2x2 MIMO (2.412 - 2.472 / 5.15 - 5.825 GHz)
• Very cost-effective industrial 5G router solution
• Fully programmable Operating System with well documented SDK
• Multiple VPN options available including DMVPN & IPSEC
• Free cloud management platform – RCMS
• Robust metal enclosure with small footprint – DIN-rail + wall mount options
Product video:
The product video will provide you with information about the features of the Robustel R5020 Lite router and present specific examples of use.
Package contains:
• 4x 5G cellular antenna
• 2x WiFi antenna
• Power supply
• Mounting Kit
• Connector 2pin
• Connector 3pin
Ethernet cable not included.
SECTRON recommends to buy the following accessories:
AM-RT-ETH150-CAT5E - Ethernet cable CAT5e, RJ45/RJ45, Grey, 1.5m
Technical parameters can be found in the attached datasheet.
