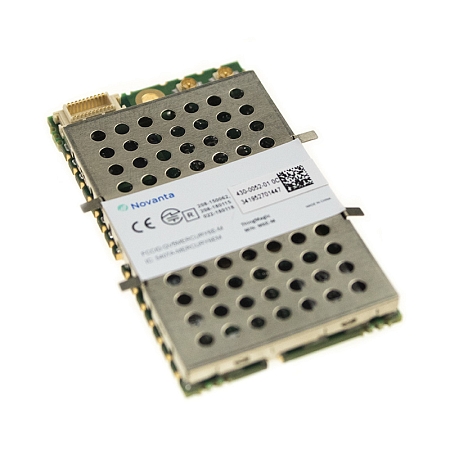

ThinkMagic Micro-LTE Embedded UHF RFID MODULE
The 2-port Micro and Micro-LTE deliver the form factor, efficiency, RF power, and flexibility needed to embed UHF RFID in your best-in-class portable and hand held applications. The Micro reads 750 tags/second and the Micro-LTE is optimized for applications with small populations and reads 50 tags/second. The low power consumption of both modules fits battery operated applications and wider RF output range (-5 dBm to +30 dBm) is a key requirement for RFID enabled printers, tag commissioning stations, and point of sales readers. Edge connections allow the Micro and Micro-LTE to be soldered directly to a motherboard as a standard component. The on-board connectors allow the module to be mated to a motherboard.
Key Features:
• Support for two monostatic RF antennas
• 28 solder-down, board-edge connections or Molex low profile connector
• Separate read and write levels, command adjustable
• UART and USB 2.0 control/data interfaces
• Low power consumption
Available options:
M6E-MICRO-LIC-2F Micro-LTE license for optional IPX and ISO 18K-6B protocols (Gen2 Standard)
Product prices on request.
More information can be found in the attached datasheet.
