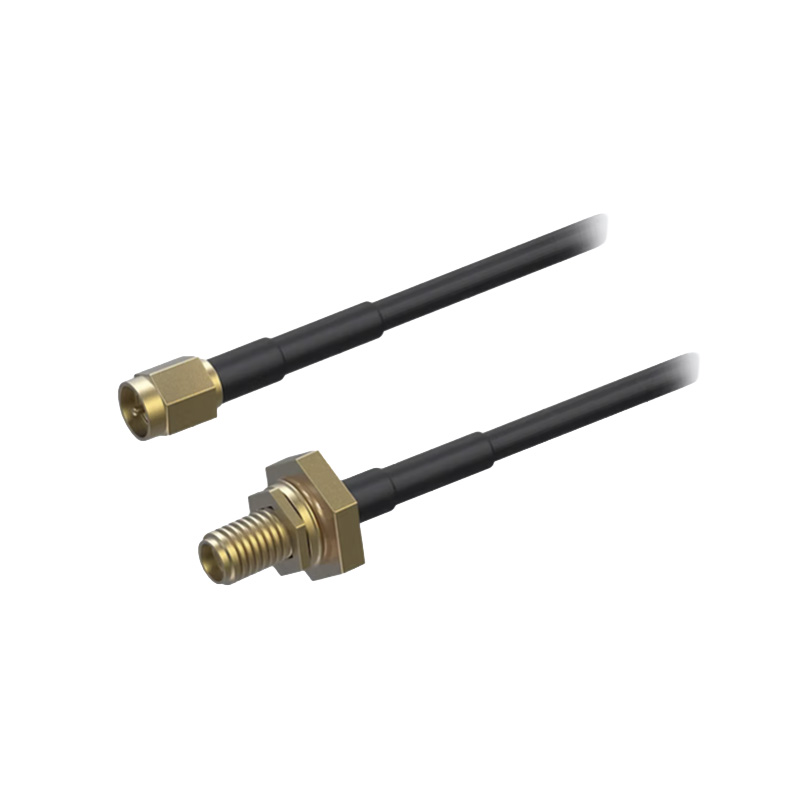

Teltonika SMA Cable Extension
The original high-frequency coaxial extension cable from Teltonika is designed for reliable signal transmission between industrial routers, gateways, and external antennas. It is the ideal solution for situations where the network device is located in a metal cabinet, server room, or inside a building, while the antenna needs to be routed to a location with optimal reception (e.g., on a roof, facade, or wall mount).
Compatible with all Teltonika industrial routers and gateways (e.g., RUT, RUTX, TRB, TRM series) and other devices with SMA RF connectors.
Main Advantages:
- High-Quality Transmission: The cables are designed with an emphasis on low attenuation, which minimises signal loss even over longer distances.
- Industrial Durability: Flexible yet highly durable materials ensure a long lifespan and stable electrical properties even in demanding industrial environments.

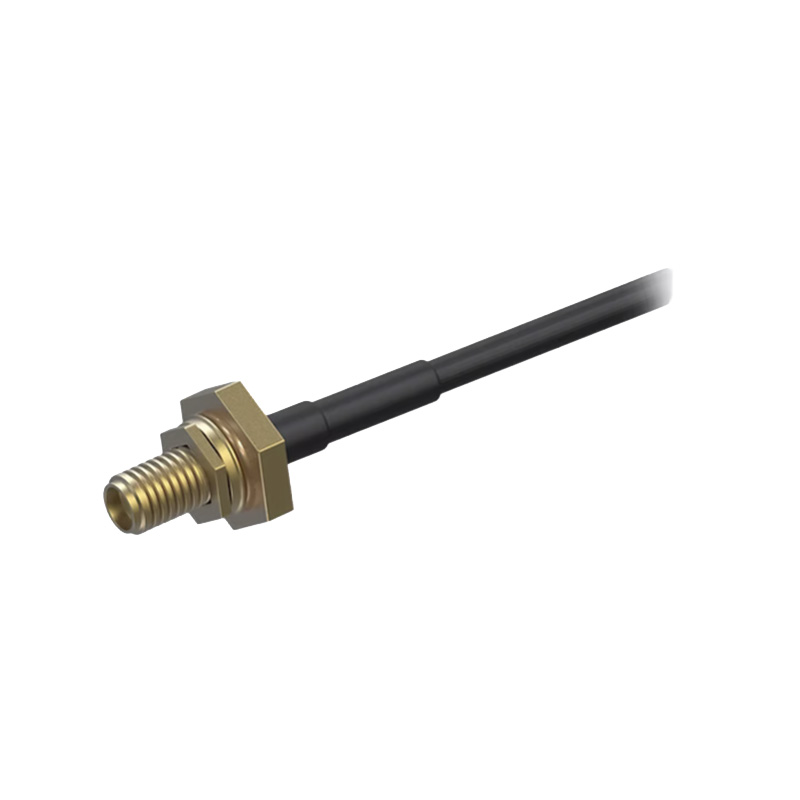

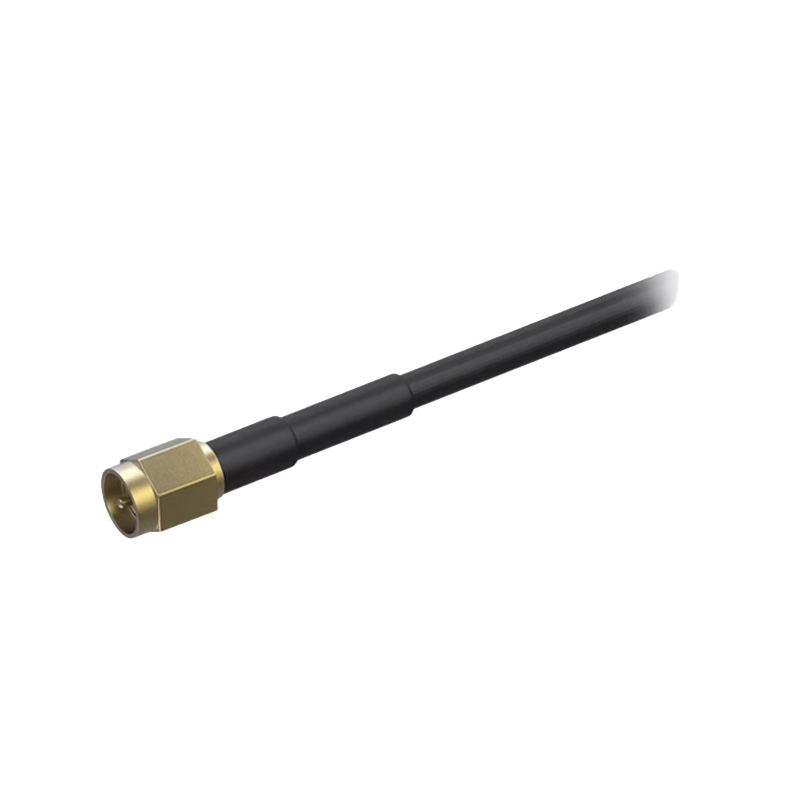

- Standardised Connectors: They are fitted with an SMA male connector on one end and an SMA female connector with a nut on the other, making them a universal adapter for most standard cellular (LTE/5G) and GNSS antennas.
Technical Parameters:
- Connector type: SMA Male (male), SMA Female (female)
- Characteristic impedance: 50 Ω
- VSWR: 1.35
- Frequency range: 0 – 6000 MHz
- Length: 2000 mm
- Working temperature: –55 °C to +155 °C
- Application: Indoor and outdoor installation
