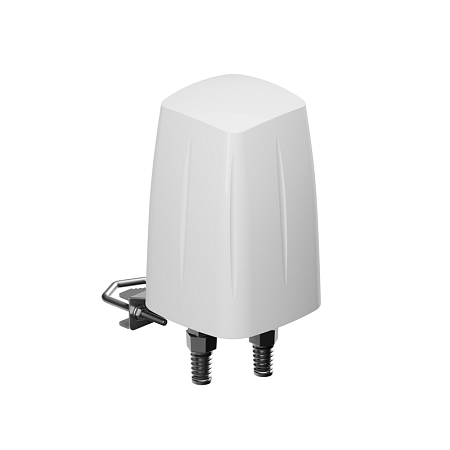

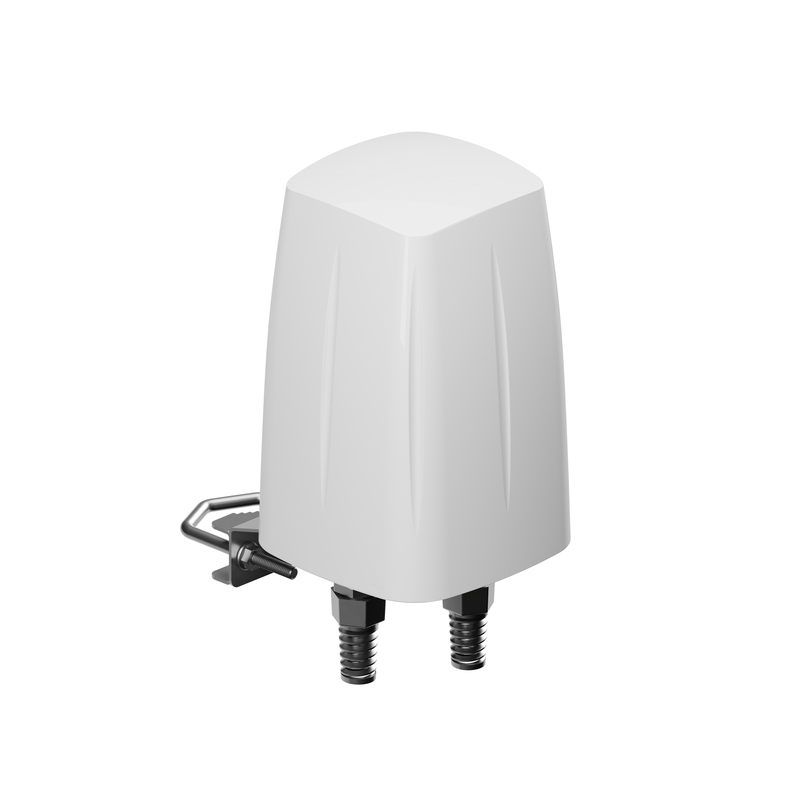

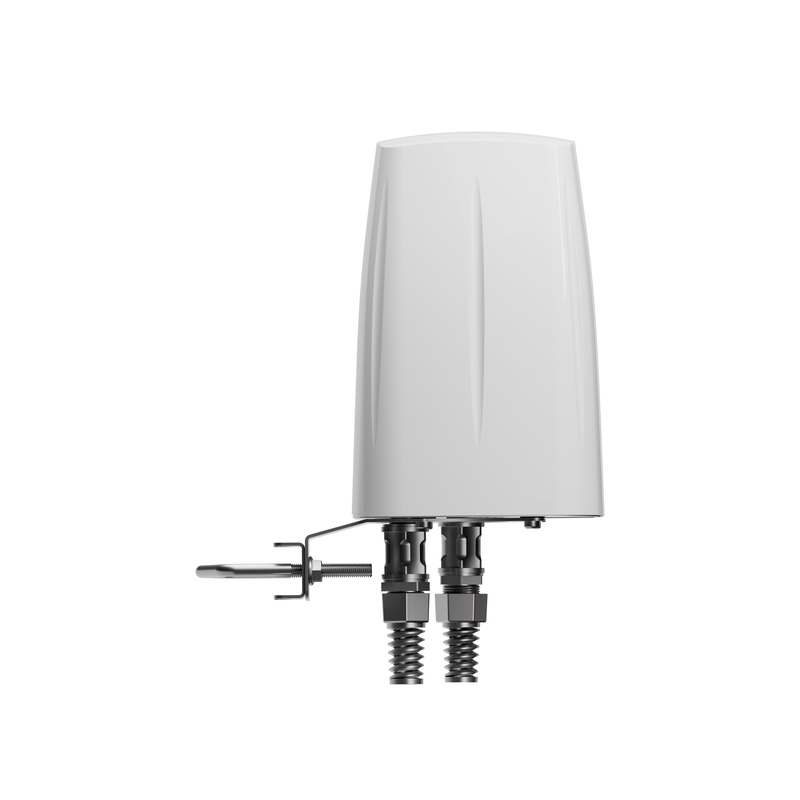

Teltonika PR1DCA70 Outdoor Combo Antenna
The Teltonika PR1DCA70 outdoor combo antenna is designed for direct use with the Teltonika RUTC50 and RUTC54 5G routers.
This durable antenna combines LTE + 5G cellular, Wi-Fi and GPS/GNSS technologies.
The cellular section covers the 617–960 MHz, 1700–2700 MHz, 3300–4700 MHz and 5200–6000 MHz bands, ensuring full compatibility with LTE and 5G networks. Its omnidirectional radiation pattern features vertical polarization and a gain of up to 4.5 dBi. It connects via four SMA connectors on RG316 cables.
The dual-band Wi-Fi section (2400–2500 MHz and 4700–6000 MHz) provides a higher gain of up to 7.5 dBi and is fitted with two RP-SMA (M) connectors. The assembly also includes an integrated GNSS antenna for the 1560–1610 MHz band, with an active 28 dB LNA amplifier.

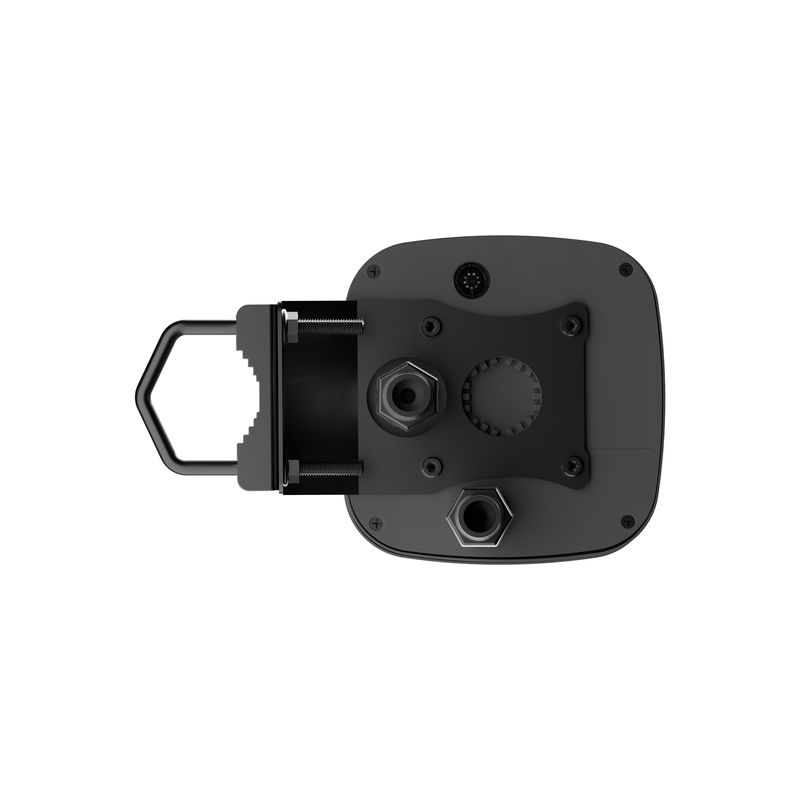

With an IP67 rating, the antenna is fully dustproof and waterproof. It operates reliably in extreme temperatures ranging from -40 to +75 °C. The integrated mounting bracket allows for quick and flexible installation on a wall, ceiling or mast.
Applications
Thanks to its versatile omnidirectional radiation pattern, support for the latest 5G networks and durable enclosure, this antenna is ideal for a wide range of B2B and public-sector applications:
- Smart cities and urban infrastructure:

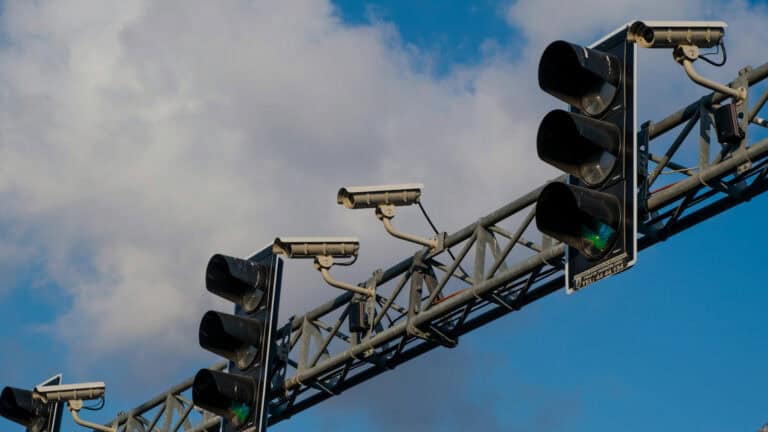

Connecting city surveillance systems, weather stations, information boards and EV charging stations that require reliable transmission of large volumes of data over 5G, with protection against the elements. - Industrial automation and remote monitoring (M2M / IoT):
Ideal for installation on masts or the exterior walls of production facilities, container stations and substations, where the router needs to be positioned outside a metal cabinet to achieve maximum signal gain. - Construction and temporary installations:
Quickly deploy internet connectivity at construction sites, temporary workplaces or promotional events. The entire setup can be easily mounted on a pipe or mast and relocated once the project is complete. - Marine and yachting:
The durable construction ensures reliable operation on boats and vessels navigating coastal waters.
Technical specifications
- Cellular bands: (5G/LTE) 617–960 MHz / 1700–2700 MHz / 3300–4700 MHz / 5200–6000 MHz
- Cellular gain: ≤ 4.5 dBi
- Wi-Fi bands: 2400–2500 MHz / 4700–6000 MHz (dual-band)
- Wi-Fi gain: ≤ 7.5 dBi
- GNSS / GPS band: 1560–1610 MHz (with active 28 dB LNA amplifier)
- Polarization: Vertical
- Connectors: 4 × SMA (M) for LTE/5G, 2 × RP-SMA (M) for Wi-Fi, 1 × SMA (M) for GPS
- Ingress protection: IP67
- Weight: 1430 g
- Dimensions: 342 × 188 × 159 mm
- Operating temperature: -40 to +75 °C
The datasheet is available in the downloadable documents section.
