Teltonika PR1KS210 - LTE/GSM Antenna, Magnetic
Band support

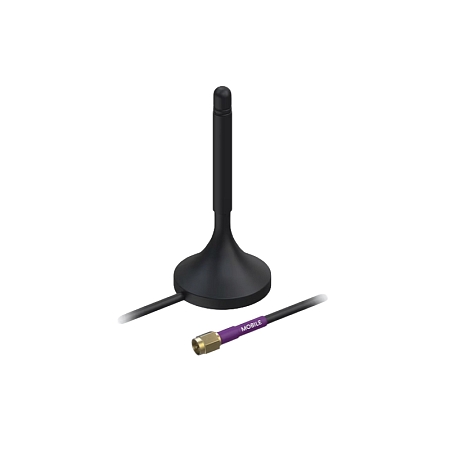

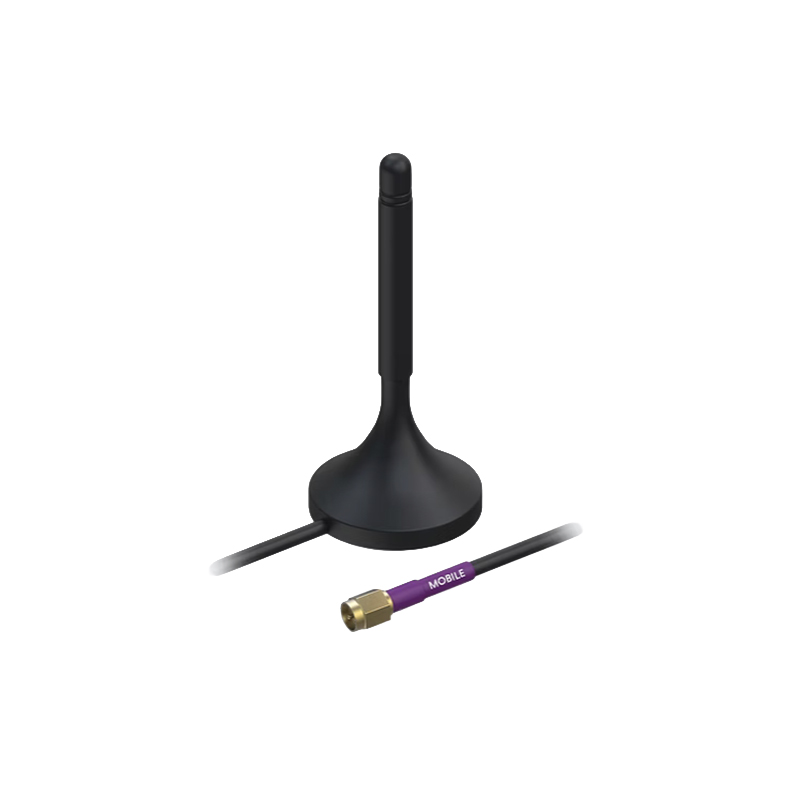

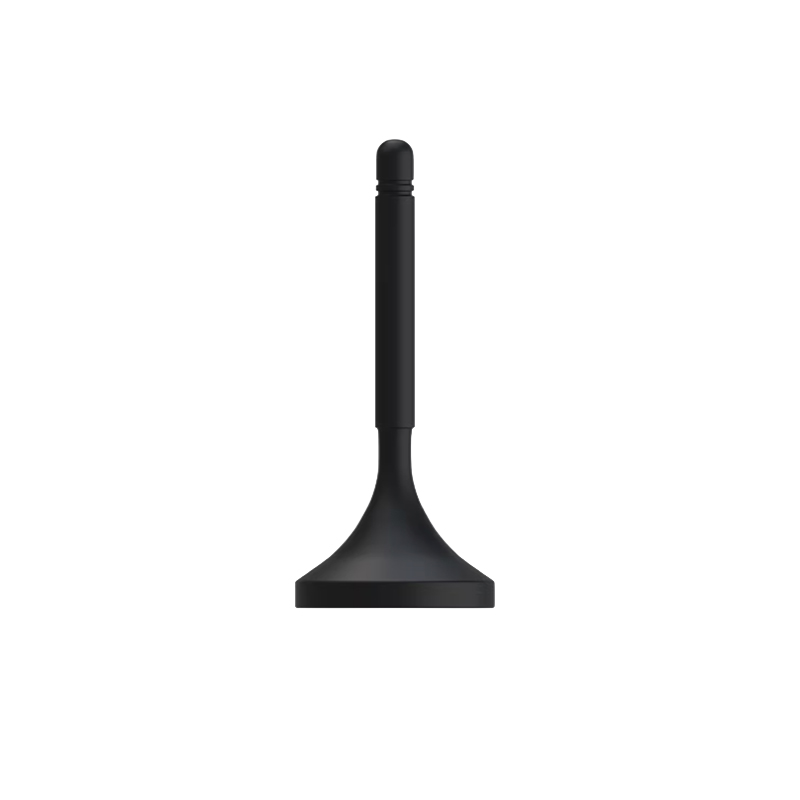

This omnidirectional magnetic antenna is designed to receive signals in 4G/LTE and GSM networks. The antenna operates in the 699–868/1850–2690 MHz bands. It is the ideal solution for Teltonika industrial routers and gateways.
Flexible mounting thanks to magnetic base
Thanks to its strong magnetic base, the antenna can be easily and securely attached to any metal surface (e.g., a control panel enclosure or a vehicle body). This is particularly important in situations where the router is located inside a metal enclosure that blocks the signal. By mounting this antenna on the exterior, you will significantly improve connection stability and data transfer speeds.
Antenna equipment

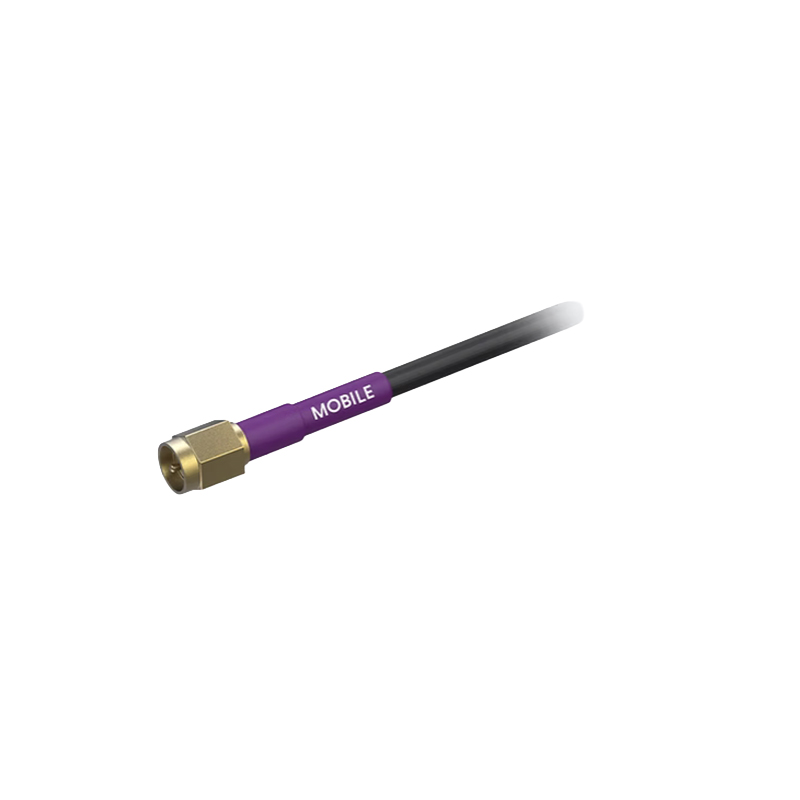

The LTE antenna is equipped with a high-quality 3-meter RG174 cable terminated with an SMA connector.
Compatibility with Teltonika devices
It is fully compatible with the following router lines and Raspberry PI accessories:
- Teltonika RUT2xx, RUT361, RUT9xx, RUTXxx, RUTMxx, RUTC41
- Teltonika TRB1xx, TRM2xx
- Teltonika accessories Calyx
Technical specifications:
- Technology: Mobile (4G/LTE/GSM)
- Frequency range: 698–960 / 1710–2690 MHz
- Gain: 1 dBi
- VSWR: < 3.0
- Polarization: Linear
- Impedance: 50 Ω
- Connector: SMA male
- Cable: RG174, length 3 m
- Mounting method: Magnetic
For more technical specifications, please refer to the attached datasheet.
