Teltonika PR1KCL28 - LTE and GNSS Antenna
The Teltonika omnidirectional combo antenna receives signals for 4G/LTE and GNSS technologies, operating in the 1575.42 ± 3 MHz and 698–960, 1710–2690 MHz frequency bands.
Durable Design for Outdoor and Roof Mounting

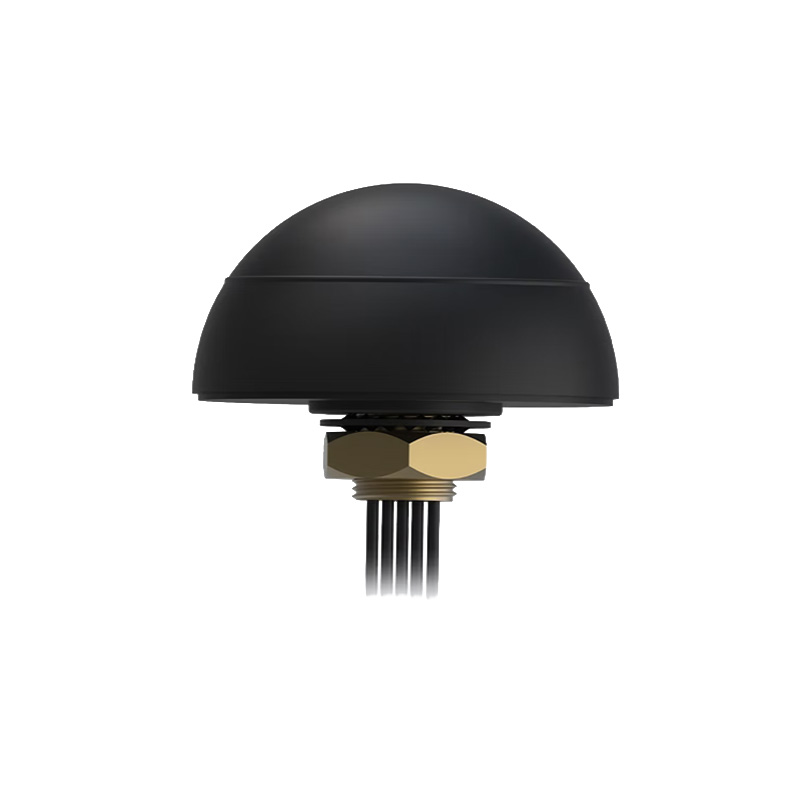

The antenna is designed for permanent screw mounting, for instance, on a vehicle's roof. Its robust, UV-protected ABS plastic housing and IP65 rating ensure long-term durability, even when continuously exposed to harsh weather conditions.
Wide Temperature Range and Features

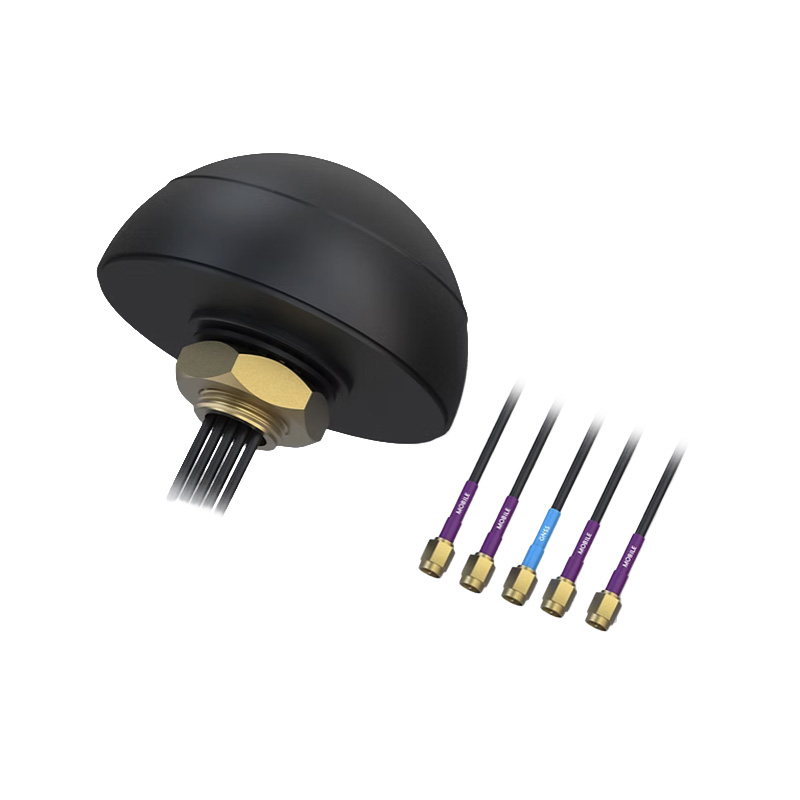

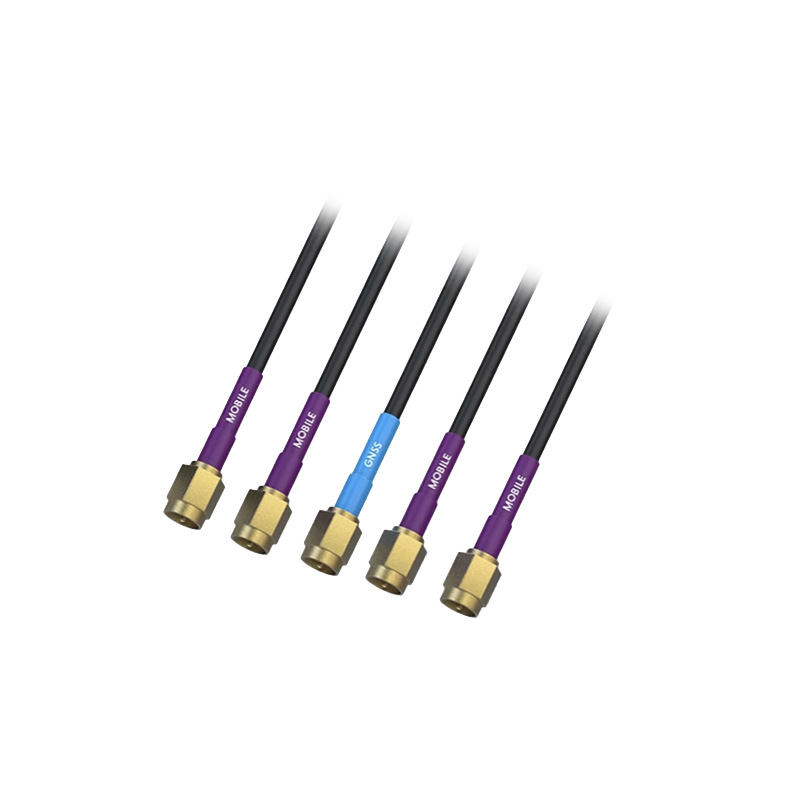

This antenna operates reliably in extreme temperatures ranging from -40 °C to +85 °C. It comes equipped with five 3-meter-long RG174 cables, each terminated with a standard SMA male connector.
Compatibility with Teltonika Devices
The antenna is fully compatible with the following industrial routers:
Technical Specifications
- Frequency: 1575.42 ± 3 MHz and 698–960, 1710–2690 MHz
- Mounting: Screw Mount
- Impedance: 50 Ω
- VSWR: < 2.0
- Polarisation: Linear
- Operating Temperature: -40 °C to +85 °C
- IP Rating: IP65
More technical parameters can be found in the attached datasheet.
