Numer katalogowy : GM-PLS83-W-R1.2
Producent: Telit Cinterion
Kod produktu: L30960-N6530-A120

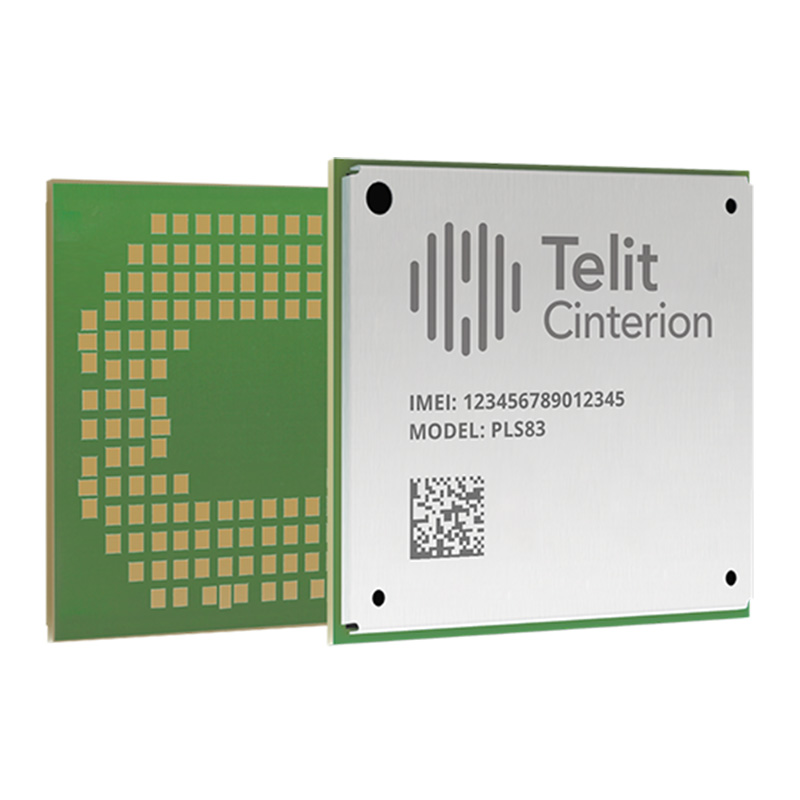

Telit Cinterion PLS83-W Rel.1.2

Numer katalogowy : GM-PLS83-W-R1.2
Producent: Telit Cinterion
Kod produktu: L30960-N6530-A120

Telit Cinterion PLS83-W Rel.1.2

Cinterion PLS83-W Rel.1.2 is a Telit Cinterion 4G wireless module that provides connectivity with 2G/3G backup devices 18 Band LTE Cat.4, Seven Band 3G UMTS/WCDMA and Quad-Band GSM.

285.18 PLN (65.79 €) z VAT (23%) / szt.

bez VAT 235.69 PLN / szt.

Na magazynie
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Telit Cinterion PLS83-W Rel.1.2

Cinterion PLS83-W Rel.1.2 is a Telit Cinterion 4G wireless module that provides connectivity with 2G/3G backup devices 18 Band LTE Cat.4, Eight Band 3G UMTS/WCDMA and Quad-Band GSM. The module offers DL transmission speeds: max. 150 Mbit/s and UL: max. 50 Mbit/s.

It is ideal for demanding industrial IoT applications that require speed and optimal coverage, such as global tracking and tracing, industrial gateways and transportation solutions. These applications require high-speed data, long life, stability of 4G networks, and continuous coverage in areas where a 4G network is not available.

This PLS83-W Rel.1.2 module is designed for use anywhere in the world.

General Features

• 3GPP Rel.9 Compliant Protocol Stack
• FDD-LTE: bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 26, 28, 66
• TD-LTE: bands 38, 40, 41
• UMTS (WCDMA/FDD): bands 1, 2, 4, 5, 6, 8, 19
• Quad Band GSM: 850, 900, 1800, 1900 MHz
• Integrated GNSS support
• (GPS/BeiDou/GLONASS/Galileo)
• SIM Application Toolkit, letter classes b, c, e with BIP and
• RunAT support
• Control via standardized and extended AT commands (Hayes, TS 27.007 and 27.005)
• Embedded IP stack with IPv4 and IPv6 support
• TCP/IP stack access via AT command and transparent
• TCP/UDP services
• Secure Connection with TLS/DTLS
• Internet Services TCP/UDP server/client, DNS, Ping, HTTP,
• SMTP, FTP client
• LGA pad soldering mount, MSL3
• Supply voltage range: 3.0 - 4.5 V
• Dimension: 33 x 29 x 2.6 mm
• Operating temperature: -40°C to +85°C
• RoHS compliant• USB Interface features a composite mode, compliant to
• Windows, Linux and Mac
• Firmware update via USB and ASC
• RLS Monitoring (Jamming detection)
• Informal Network Scan
• Cell ID based Location Support
• Module Services
• Embedded Processing (optional)
• eSIM

Telit company merged with Thales Gemalto, thereby created a major global player. The newly formed Telit Cinterion group is a major manufacturer of Cinterion® wireless modules and a leader in digital security and encryption in chip manufacturing. SECTRON is an European authorized distributor of this Telit Cinterion division.

Technical parameters can be found in the attached datasheet.

Parametry

Wymiary 33 x 29 x 2.6  mm Technologia GSM , , ,
Waga 9.63  g Orzecznictwo RoHS , , , , , , , , , ,
Zasilanie 3.0 – 4.5 V  V Liczba kart SIM 2x (1x eSIM)
Rozszerzenie RLS Monitoring , , UMTS pasmo 800  MHz ,  MHz ,  MHz ,  MHz
