Numer katalogowy : AO-SMA-KFP-5
Producent: SECTRON

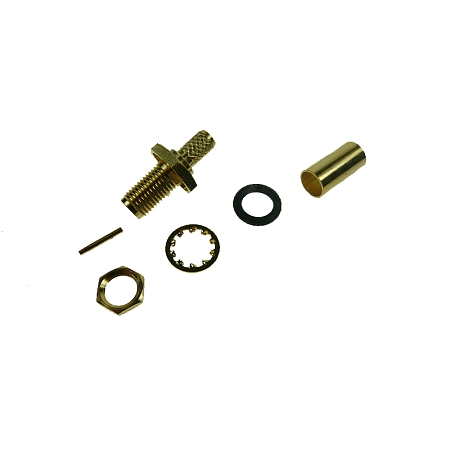

SMA(f) BULKHEAD FOR RG58

Numer katalogowy : AO-SMA-KFP-5
Producent: SECTRON

SMA(f) BULKHEAD FOR RG58

SMA (f) connector panel for coaxial cable RG58.

14.77 PLN (3.35 €) z VAT (23%) / szt.

bez VAT 12.20 PLN / szt.

Cena od 10 sztuk 2.22 €

Cena od 100 sztuk 1.99 €

Zapytani
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

SMA (f) connector for cable RG58

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The connection and disconnection of the connectors is guaranteed for up to 500 cycles. Temperature range is -65 °C to +165 °C. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

This panel connector is designed for coaxial cable RG58.

Material and finish:

 Nut: Brass / Gold
• Washer: Brass / Gold
• Gasket: Silicone Rubber / Rubber
• Insulation: Teflon / Teflon
• Body: Brass / Gold
• PIN: Beryllium Copper / Gold
• Ring: Brass / Gold

Parameters:

• Type: Female (f)
• Impedance: 50 Ω
• Maximum frequency: 0-18 GHz
 Mating Cycles: 500
• Operating temperature: - 65 °C to + 165 °C

Technical parameters can be found in the attached datasheet or contact our sales department.

Parametry

Kabel RG58 Wykonanie Panel
