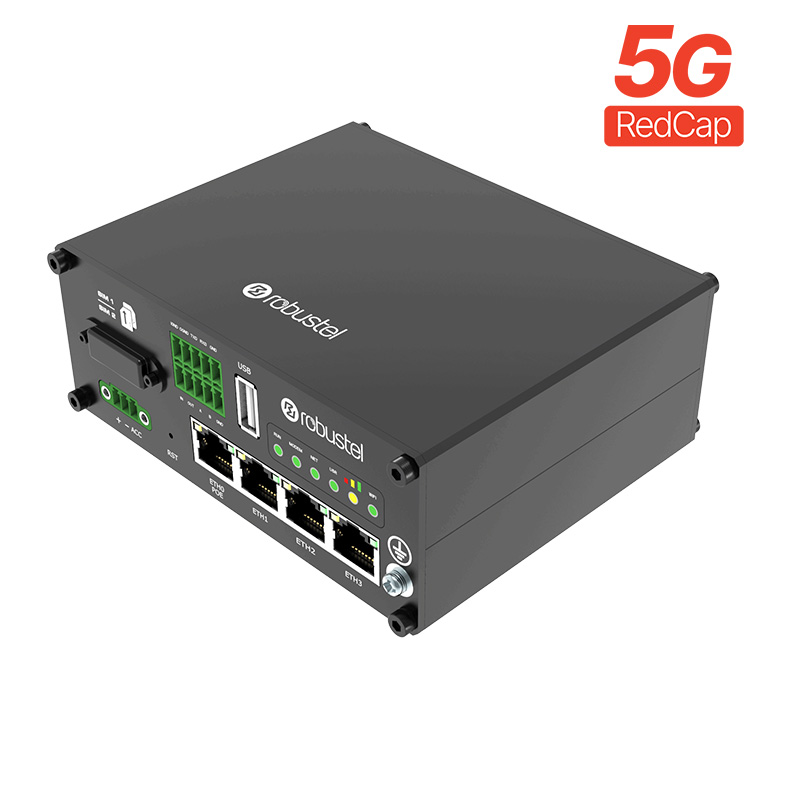

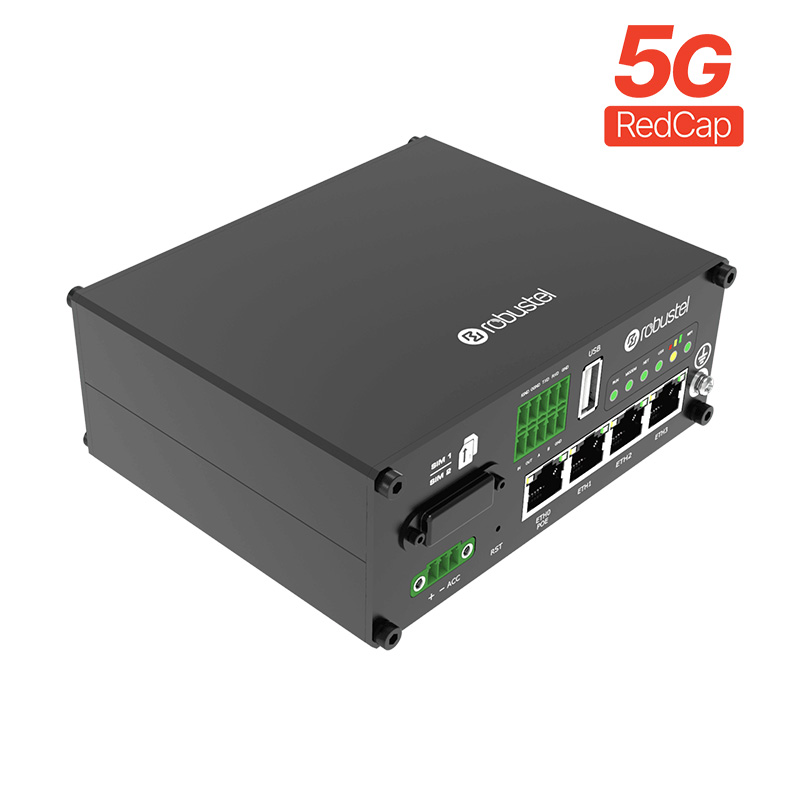

Robustel R2110 5G RedCap Industrial Router
The Robustel R2110 5G RedCap is a rugged industrial router designed for demanding IoT/M2M applications, vehicle fleets (in-vehicle), and smart city infrastructure. It utilises state-of-the-art 5G RedCap (3GPP Release 17) technology, which brings key benefits of 5G networks, such as high security, low latency, and long-term sustainability, with significantly lower power consumption and at a fraction of the cost of standard 5G routers. Thanks to Dual-SIM support, Gigabit Ethernet, dual-band Wi-Fi, and an integrated GNSS receiver, it represents a reliable solution for stable connectivity anywhere in the field.
5G RedCap Technology for Industrial Applications5G RedCap (Reduced Capability / NR-Light) technology represents the ideal middle ground for industrial applications. It provides stable transmission speeds and native access to the 5G core (5GC), including the latest security standards. All this while maintaining low power consumption and lower acquisition costs compared to full 5G NR. If necessary, the router automatically falls back to a backup 4G/LTE network.
Application Examples
- Connectivity for Vehicle Fleets and On-Board Systems: The router consolidates multiple on-board devices of service or freight vehicles into a single managed platform. The powerful 5G RedCap uplink easily handles the simultaneous real-time transmission of telematics, camera recordings, payment terminals, and remote diagnostics.
- Temporary Connectivity for Projects and Construction Sites: At construction sites or mining operations where fixed infrastructure is lacking, the device functions as a reliable primary router. For local equipment connection, it offers four Gigabit LAN ports and dual-band Wi-Fi with wide coverage of the entire area.
- Backhaul for Camera Systems (CCTV): In locations with independently powered IP cameras and NVR recorders, the router ensures high-throughput mobile transmission of video streams to a monitoring centre. Furthermore, the RCMS cloud platform enables complete remote management and router reboots without the need to physically send a technician to the site.
Uninterrupted Operation with Dual-SIM Failover
The R2110 5G RedCap offers maximum network reliability thanks to advanced link backup (WWAN, WAN, WLAN). It supports fast failover configuration (cold/warm failover), load balancing, and Dual-SIM technology with Smart Roaming. If the primary connection fails, the router instantly redirects traffic to the backup link.
Wide Range of Interfaces for Industry and IoT

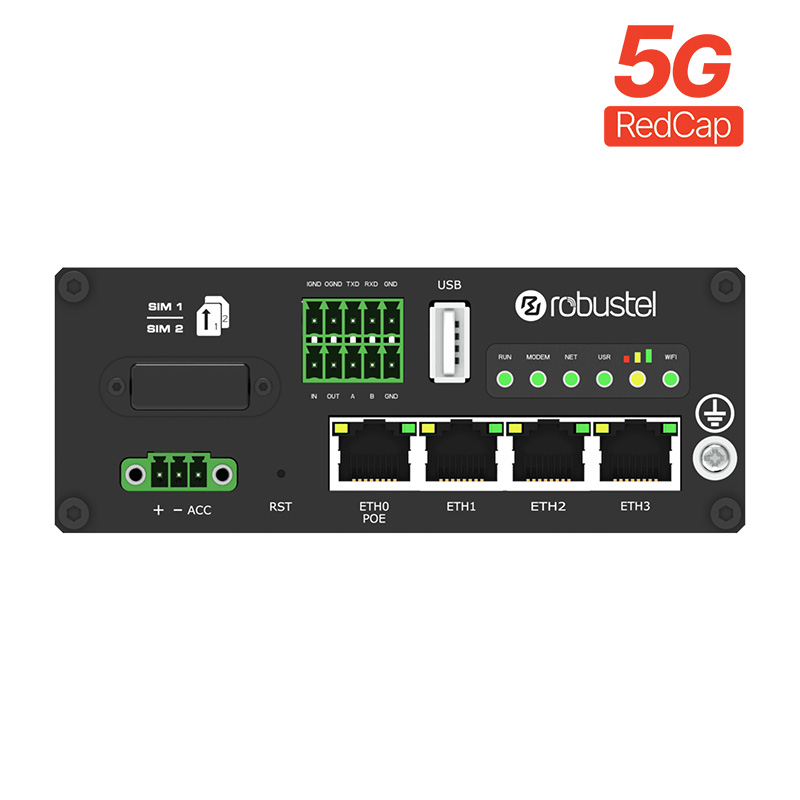

- 4x Gigabit Ethernet ports (configurable as 1x WAN + 3x LAN) with optional PoE-PD (Power over Ethernet) support.
- Dual-band Wi-Fi 5 (802.11ac) for reliable local wireless coverage.
- Integrated GNSS receiver (GPS, GLONASS, Galileo, BeiDou, QZSS) for precise location tracking and vehicle telemetry.
- RS-232 and RS-485 serial interfaces and digital inputs/outputs (DI/DO) for direct connection of industrial sensors and PLCs.
RobustOS Operating System and RCMS
The router runs on the stable RobustOS operating system (based on Linux), which offers security options (IPsec, OpenVPN, GRE, WireGuard) and support for custom programming in C/C++. Thanks to the RCMS (Robustel Cloud Manager Service) cloud platform, you can remotely manage, configure, and update thousands of devices simultaneously from a single, clear interface.
Technical Specifications
- Mobile Technology: 5G RedCap (3GPP Rel. 17) with automatic fallback to a backup 4G LTE network.
- SIM Slots: 2× Mini SIM (2FF) with Dual-SIM failover support (connection backup).
- Ethernet: 4× 10/100/1000 Mbps ports (default setting: 1× WAN + 3× LAN); optionally with PoE-PD support on the ETH0 port.
- Wi-Fi: Dual-band Wi-Fi 5 (802.11a/b/g/n/ac) with 2×2 MIMO technology.
- Satellite Navigation: Integrated GNSS (support for GPS, GLONASS, Galileo, BeiDou, QZSS systems).
- Industrial Interfaces: 1× RS-232 serial port, 1× RS-485 serial port, 1× digital input (DI), and 1× digital output (DO).
- Security and VPN: Advanced encryption and IPsec, OpenVPN, GRE, WireGuard, DMZ protocols, and an integrated firewall.
- Power Supply: Wide industrial range of 9 to 36 V DC.
- Operating Temperature: Standard -20 °C to +55 °C (with an optional extended range of -25 °C to +70 °C).
- Enclosure and Chassis: Rugged aluminium casing with IP30 protection.

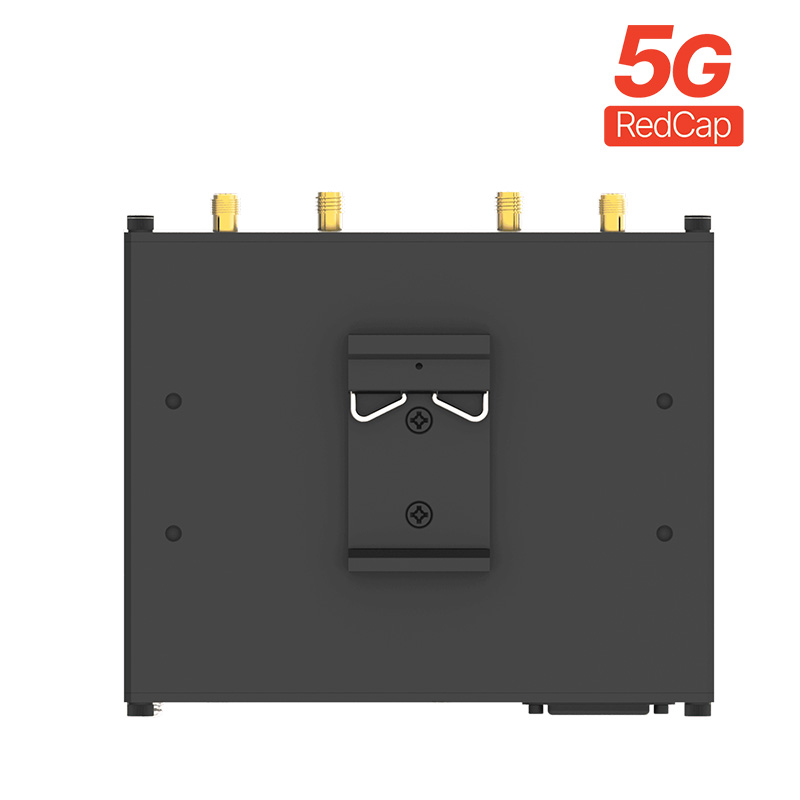

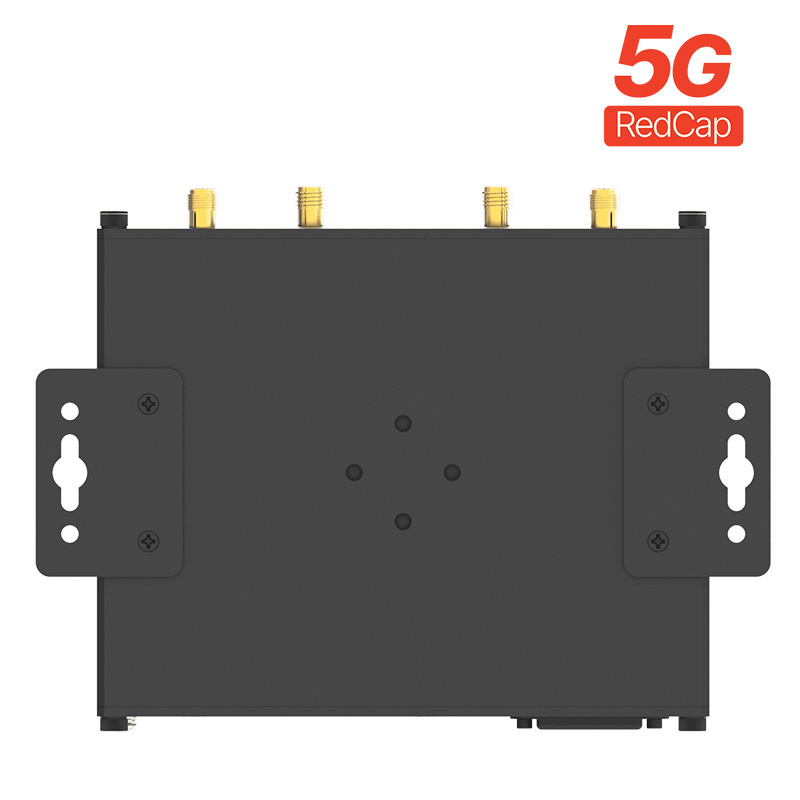

- Mounting Options: Flexible placement on a desk (desktop), wall, or standard DIN rail (35 mm).
Package Includes:
- 1× Robustel R2110 5G RedCap router
- 1× DIN rail mounting kit
Ethernet cable and power supply are not included.
SECTRON recommends purchasing the following accessories:
AM-RT-ETH150-CAT5E - Ethernet cable CAT5e, RJ45/RJ45, grey, 1.5m
AM-RT-FPOWR - Power supply 12V / 1A, L=1.4m.-without connector, free end
More information can be found in the attached datasheet.
Technical parameters can be found in the attached datasheet.
