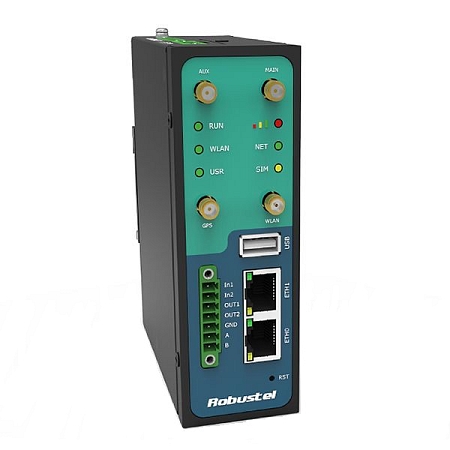

Robustel LTE Router R3000-4L GPS, fw 3.0.19
The industrial Dual SIM R3000 router with 4G FDD LTE transmission technology, an Ethernet interface, and a clear web-based administration interface provides fast and reliable wireless connectivity for M2M and IoT applications. This model is also equipped with a GPS module and fully supports 2G, 3G, and 4G mobile networks.
Examples of use
- Connecting industrial PLCs
Direct remote access to PLC and HMI units significantly speeds up diagnostics and the management of production lines. It reduces the need for technicians to travel to plants in person and maintains smooth communication between the production area and the control center. - Water management
Reliable transmission of telemetry data from pumping stations, water reservoirs, and wastewater treatment plants directly to SCADA systems. Redundant connectivity keeps the infrastructure running even in the event of a primary network failure, making remote preventive maintenance easier. - Power distribution
Resilient connectivity for power switchboards and substations with immediate response to alarms. The Dual SIM function guarantees high connection availability — if one operator fails, the device automatically switches to a backup network.
Durable industrial design
The Robustel R3000-4L was designed for demanding operating conditions. Thanks to its rugged metal enclosure and wide operating temperature range of -40 to 85 °C, it is suitable for use in extreme environments such as industrial facilities or outdoor installations. It is an excellent choice for all applications requiring a robust and stable connection.
Efficient remote management and monitoring
The user-friendly interface and advanced diagnostic tools significantly simplify remote management. Administrators can configure, monitor, and troubleshoot the device remotely, saving both time and costs associated with physical site visits. Remote accessibility therefore increases overall operational efficiency and minimizes downtime.
RobustOS operating system
The R3000-4L LTE router uses the RobustOS operating system. It is a modular Linux-based system developed specifically for Robustel devices, ensuring a high level of security and flexibility.
Key Features:
• Dual SIM redundancy for continuous cellular connections supports 2G/3G/4G
• WAN link management: cellular WAN/Ethernet WAN/WLAN WAN backup
• VPN tunnel: IPSec/OpenVPN/PPTP/L2TP/GRE
• Supports Modbus gateway (Modbus RTU/ASCII to Modbus TCP)
• Supports GPS&GLONASS (optional), provides real time location and tracking
• Supports 802.11 b/g/n Wi-Fi (optional), AP and client mode
• Supports SDK, provides user programmatic interface
• Supports 802.1Q VLAN Trunk. l Supports PPPoE Bridge(IP Passthrough)
• Auto reboot via SMS/Caller ID/Timing
• Supports RobustLink (Centralized M2M management platform, to a remote monitor, configure and update firmware)
• Supports RobustVPN (Cloud VPN Portal, to provide easy and secure remote access for PLCs and machines)
• Flexible Management methods: Web/CLI/SNMP/RobustLink
• Firmware upgrade via Web/CLI/USB/SMS/RobustLink
• Various interfaces: RS232/RS485/Console/DI/DO/USB/Ethernet
• Wide range input voltages from 9 to 60 VDC and extreme operating temperature
• The metal enclosure can be mounted on a DIN-rail or on the wall, also with the extra ground screw
Package contains:
• 2x 6-pin connector
• 1x 3-pin connector
• Ethernet cable
Antennas and power supply are not included.
SECTRON recommends to buy the following accessories:
AM-RT-FPOWR - Power supply 12V / 1A, L=1.4m, w/o connector, open end
FSMAK3 - Antenna GSM/UMTS/LTE FLAT Stick 90°/180°, 690-2700 MHz, 3 dBi, SMA(m)
FSMAK - Antenna GSM/UMTS/LTE FLAT Stick 90°/180°, 698-2700 MHz, 3 dBi, SMA(m)
AP-AGNSS-A002S - Antenna GPS/GLONASS Adhesive 002, SMA(m), RG174/3m
AM-RT-ETH150-CAT5E - Ethernet cable CAT5e, RJ45/RJ45, Grey, 1.5m
*Optional accessories
AO-ALTE-MG9S - Antenna GSM/UMTS/LTE Magnetic 90, 5-9 dBi, SMA(m), 3m RG174 – (3m)
AO-ALTE-MG9S5 - Antenna GSM/UMTS/LTE Magnetic 5-9 dBi, SMA(m), 5 m RG174U-DS – (5m)
Product video
The product video will provide you with information about the features of the Robustel R3000 router and present specific examples of use.
More information can be found in the attached datasheet.
