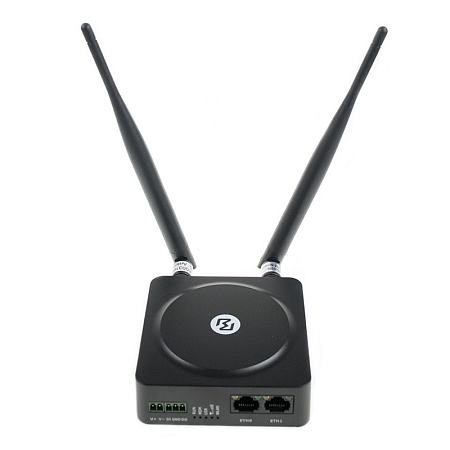

Industrial Wi-Fi/LTE router Robustel R1510
The Robustel R1510 is a compact LTE Cat 4 router designed for stable IP connectivity in space-constrained IoT applications. The device combines high-speed mobile connectivity (4G/3G/2G) with Ethernet and Wi-Fi in the 2.4 GHz band. The failover function ensures an automatic switch to a backup path in case of a primary link failure, guaranteeing a stable and continuous network connection. It is intended for use in the EMEA and SEA regions.
Compact Design
The Robustel R1510 LTE router features a compact size of 91.5 × 91.5 × 31.5 mm, making it ideal for space-limited applications such as payment terminals, ticketing machines, vending machines, tracking devices, and more. It is perfectly suited for remote monitoring and field device management.
Note: This is a standard industrial configuration. Without additional software modifications (development), it is not suitable for direct use in the automotive sector (in-vehicle applications).
Real-World Applications
Thanks to its high VPN security and remote management capabilities, the Robustel R1510 is primarily used in the following sectors:
- Self-service systems: Provides connectivity for parcel lockers, parking systems, and payment kiosks. LTE backup ensures seamless payment processing.
- Ticketing systems: Primary 4G/LTE connectivity with failover ensures smooth ticket sales and transaction processing. Additionally, the RCMS platform enables efficient centralised management, configuration, and remote updates for all devices.
Fotogalerie: 'Příklady použití Robustel R1510'
RobustOS Intelligent Operating System
The router utilizes the modular RobustOS operating system based on Linux. This system is designed specifically for industrial IoT needs and allows for the installation of additional applications (via SDK). This enables the router’s functionality to be tailored to specific project requirements without needing to change the entire device firmware.
Advanced VPN Security and RCMS Cloud Platform
The router offers a comprehensive suite of VPN protocols, including IPsec, OpenVPN, GRE, and WireGuard, ensuring secure connection to corporate infrastructure. For efficient operation of multiple devices simultaneously, the Robustel Cloud Manager Service (RCMS) platform is available, enabling remote management, monitoring, and diagnostics of network devices. This eliminates the need for physical technician site visits and minimizes operational costs.
Product Video
The product video will provide you with information about the features of the Robustel R1510 router and present specific examples of use.
Key Features:
- Network Support: 2G, 3G, 4G (LTE Cat 4)
- Ethernet: 2× 10/100 Mbps
- Link Manager: Support for Mobile WAN, Ethernet WAN, WLAN, WAN backup, and ICMP detection
- Connectivity: Static, PPPoE, DHCP client
- Operating System: RobustOS + SDK + App support
- VPN Protocols: IPsec, OpenVPN, GRE, WireGuard
- Management: Web, CLI, SMS, RCMS Cloud
- Rebooting: Automatic reboot via SMS / Timer
- Dimensions: 91.5 × 91.5 × 31.5 mm
- Mounting: Wall mount or DIN rail
Package included:
- Router R1510-4L
- 1× WiFi antenna
- 1× 4G LTE antenna
- 1× 2-pin connector
- 1× 3-pin connector
Ethernet cable and Power supply are not included.
SECTRON recommends to buy the following accessories:
AM-RT-ETH150-CAT5E - Ethernet cable CAT5e, RJ45/RJ45, Grey, 1.5m
AM-RT-FPOWR - Power supply 12V / 1A, L=1.4m, w/o connector, open end
More information can be found in the attached datasheet.
