Numer katalogowy : AM-88-FMEIPIPX11
Producent: SECTRON

RF cable adaptor FME(m) panel IP67 - IPX MHF, 1.37 mm, 11-20 cm

Numer katalogowy : AM-88-FMEIPIPX11
Producent: SECTRON

RF cable adaptor FME(m) panel IP67 - IPX MHF, 1.37 mm, 11-20 cm

FME(m) panel IP67 adaptor (pigtail) - IPX MHF with LP-088 series cable, 11-20 cm cable length and 1.37 mm diameter.

7.41 PLN (1.68 €) z VAT (23%) / szt.

bez VAT 6.12 PLN / szt.

Na magazynie
i
Na magazynie Dodaj do porównania

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

VF cable adaptor with connectors FME(m) panel IP67 - IPX MHF, 1.37 mm, cable length 11-20 cm

Features:

FME(m) panel IP67 adaptor (pigtail) - IPX MHF with LP-088 series cable, 11-20 cm cable length and 1.37 mm diameter. The adaptor is designed for the frequency range of the IPX MHF 0-9 GHz / FME 0-2 GHz connector. Connecting and detaching the IPX MHF and FME connectors is easy, guarantee of 30 cycles due to the small size and strength of the U.FL connector. The FME connector has a guarantee up to 500 cycles.

Cable adaptors (pigtails) then serve as an extension for connecting eg 2G / 3G / LTE / Wi-Fi / GPS antennas to various PCBs, modules, Mini PCI cards etc.

Parameters:


• Cable type LP-088: diameter 1.37 mm
• Cable length: 11-20 cm
• Connector A: FME(m) panel IP67
• Connector B: IPX MHF
• Certification: RoHS

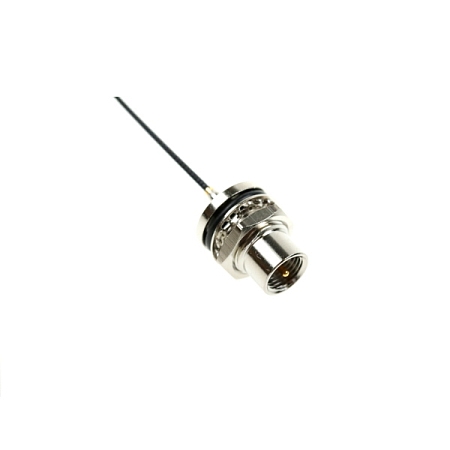

Connector A - Connector FME

Use:

FME coaxial connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 2 GHz. Temperature range is -65 °C to +155 °C. Thanks to their compact size and long longevity, the FME connectors are used in the field of mobile communications as well as for GSM antennas. They are suitable for installation in vehicles as well.

Benefits:

• High reliability due to precise processing
• Low VSWR

Properties:

• Frequency range: Up to 2 GHz
• Impedance: 50 Ohm
• Guaranteed number of connections: 500 cycles (only applies to berilium center contact)
• MAX. VSWR: <1.3: 1
• Maximum operating voltage: 500 V AC / 1 min
• Operating temperature: -65 °C to +155 °C
• Certification: RoHs

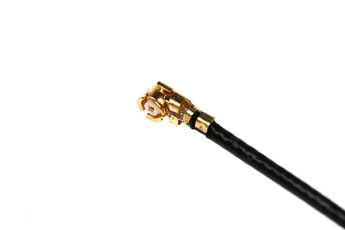

Connector B - Connector IPX MHF

Use:


IPEX MHF connectors are compatible with U.FL connectors for applications where there is very little space for connecting / interconnecting RF components. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 9 GHz.

Benefits:


• High reliability due to precise processing
• Low insertion loss
• Low VSWR
• Miniature dimensions
• High frequency range

Parameters:

• Frequency range: Up to 9 GHz
• Impedance: 50
• MAX. VSWR: Female: <1.3: 1 (0.1-3 GHz) / <1.5: 1 (3-6 GHz) /1.9:1 (6-9 GHz)
                         Male: <1.3: 1 (0.1-3 GHz) / <1.4: 1 (3-6 GHz) 1.8: 1 (6-9 GHz)
• Guaranteed number of connections before deformation: 30
• Maximum operating voltage: 200 V AC / 1 min
• Operating temperature: -40 ° C to +90 ° C
• Certification: RoHS"

Coaxial cable LP 088


Cable features:

The LP 088 coaxial cable is compatible with connectors that are applicable to a 1.37 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. The characteristic impedance of the cable is 50 Ω. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / FAKRA / FME / MHF / MCX / MMC / N / QMA / SMA / SMA-RP / SMB / SMP / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices.

We are a Czech producer of custom cable adaptors. Use our simple configurator to specify your requirements. You can also contact our sales department for advice on choosing the right connector and cable.

The best selling cable adaptors (pigtails) are in stock, contact us or order via e-shop.
