Numer katalogowy : AO-N-174-MA
Producent: SECTRON

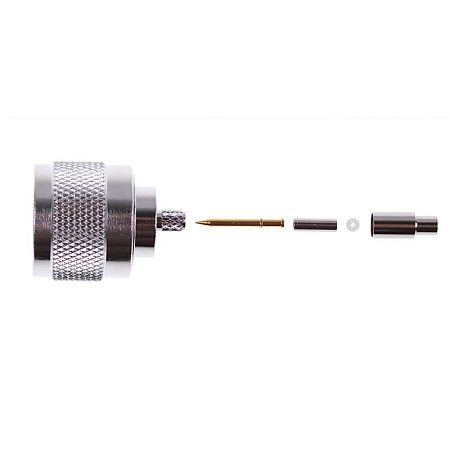

N Plug crimp for RG-174 cable

Wyprzedaż
Numer katalogowy : AO-N-174-MA
Producent: SECTRON

N Plug crimp for RG-174 cable

N (m) plag connector for coaxial cable with a diameter of 2.8 mm.

20.77 PLN (4.79 €) z VAT (23%) / szt.

bez VAT 17.17 PLN / szt.

Cena od 10 sztuk 3.17 €

Cena od 100 sztuk 2.85 €

Na magazynie < 10 szt.
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Coaxial connector N (m) for cable RG174

Connectors with a screw-thread mechanism. N connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 11 GHz. Temperature range is -65 °C to +165 °C. N connectors are used, for example, to connect wireless WLAN devices, satellite systems and GSM / GPS / Wi-Fi antennas.

Coaxial connector N (m) is designed for cable RG174.

Parameters:

• Type: Male (m)
• Impedance: 50 Ω
• Maximum frequency: 0-11 GHz
• Operating temperature: - 65 °C to + 165 °C

Specifications of RG174 cable:

The cable RG174 is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The most common cables of this type have a temperature range of -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC/FAKRA/FME/MCX/MMCX/N/SMA/SMB/SMP/TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS/GSM/WLAN antennas, antenna leads etc. There are also specially modified types of RG174 cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.'

Technical parameters can be found in the attached datasheet or contact our sales department.

Parametry

Kabel RG174 Wykonanie Kabel bezpośrednio

20.77 PLN (4.79 €) z VAT (23%) / szt.

bez VAT 17.17 PLN / szt.
