Numer katalogowy : AO-N-240-FP
Producent: SECTRON

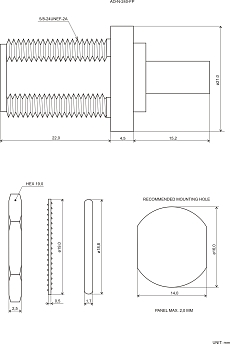

N(f) panel connector LMR240

Numer katalogowy : AO-N-240-FP
Producent: SECTRON

N(f) panel connector LMR240

Coaxial panel connector N (f) is designed for cable LMR240.

22.95 PLN (5.22 €) z VAT (23%) / szt.

bez VAT 18.97 PLN / szt.

Cena od 10 sztuk 3.45 €

Cena od 100 sztuk 3.10 €

Zapytani
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

N (f) panel connector LMR240

Connectors with a screw-thread mechanism. N connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 11 GHz. Temperature range is -65 °C to +165 °C. N connectors are used, for example, to connect wireless WLAN devices, satellite systems and GSM / GPS / Wi-Fi antennas.

Coaxial panel connector N (f) is designed for cable LMR240.

Parameters:

• Type: Female (f)
• Impedance: 50 Ω
• Maximum frequency: 0-11 GHz
• Operating temperature: - 65 °C to + 165 °C

Technical parameters can be found in the attached datasheet or contact our sales department.

Parametry

Kabel LMR 240 Złącze N(f)
