AC charging station MyBox PROFI, 2× socket, temperature kit, 5″ LCD
Key features:
• Czech product made from European components
• Easy mounting on a wall or a pole
• Robust body made of powder-coated steel and tempered glass
• Secure authorization (e.g., via RFID)
• Option to connect to a photovoltaic power plant (PV)
• Support for dynamic load balancing module (optional extra)
• MID certified electricity meter - easy consumption reading and billing options
• Front lockable door

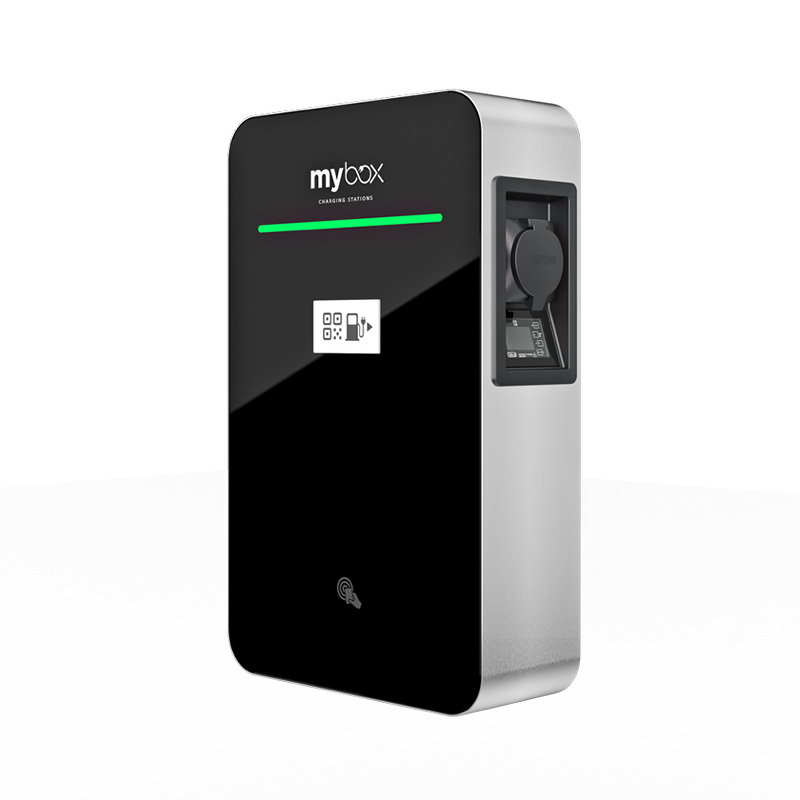

• Integrated 5″ display for showing charging status or promotional videos

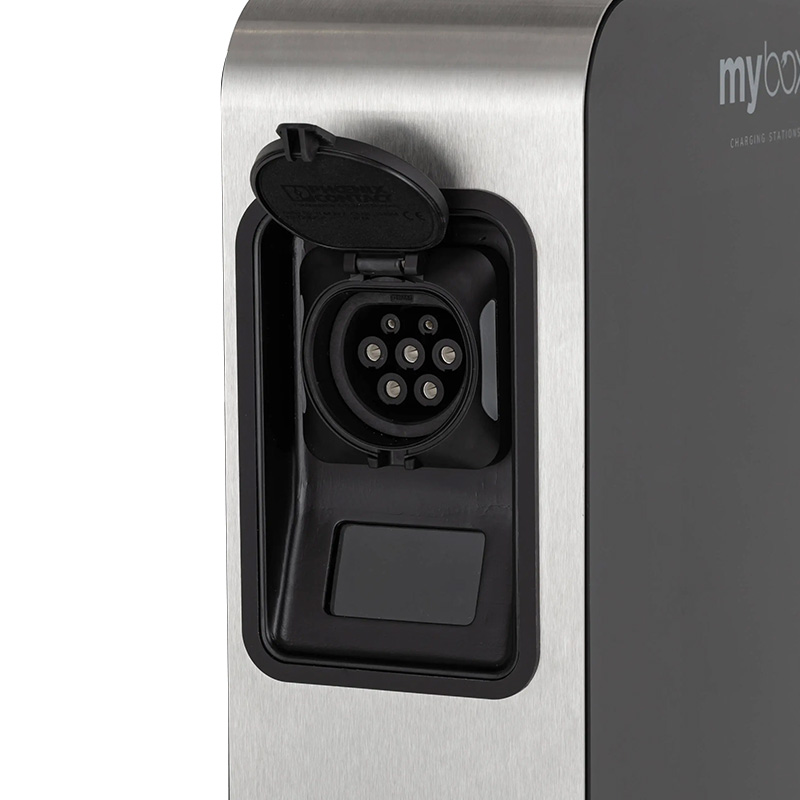

• Smart LED indicators – you will always have an overview of the charging connectors' status
• Communication via Ethernet and Wi-Fi
• Optional 4G/LTE modem accessory • OCPP 1.6 communication protocol
• Temperature kit
• Vandal protection – surface treatment for easy graffiti removal
About the MyBox Profi product
The product by the Czech manufacturer Elexim allows connection to a photovoltaic power plant and consists exclusively of available high-quality components from leading European manufacturers.

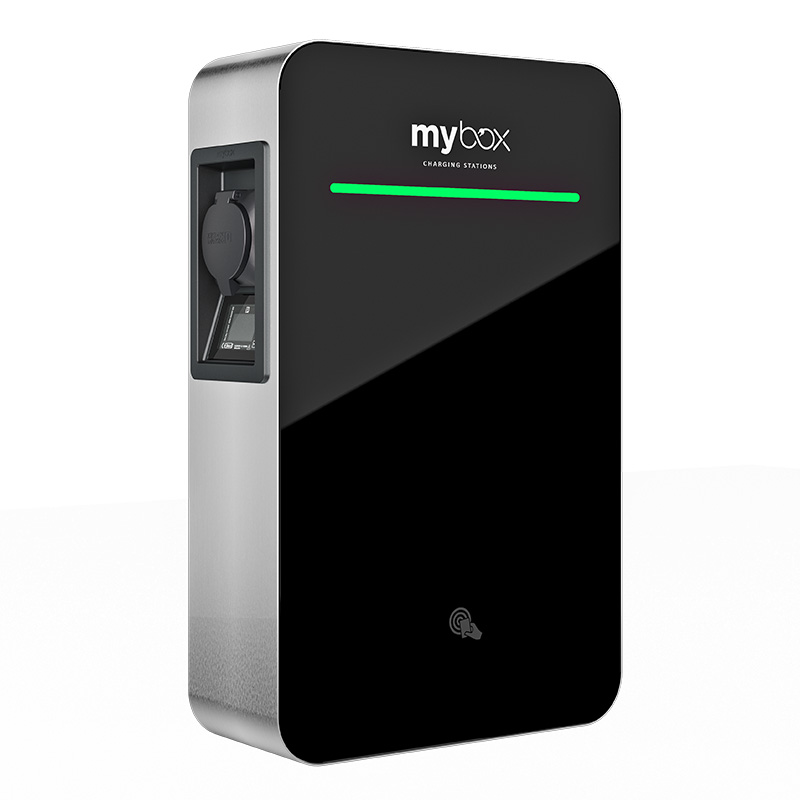

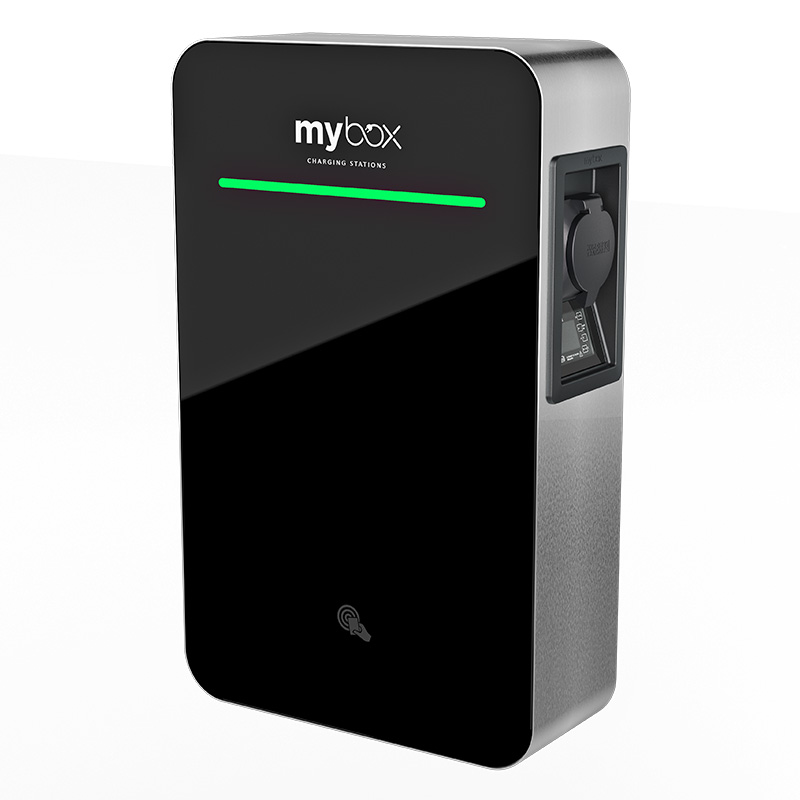

The MyBox Profi AC charging station stands out with its high-quality chassis combining powder-coated steel and glass. The combination of steel and tempered glass provides a luxurious feel and guarantees maximum safety. This station offers the possibility of custom front panel modification. The MyBox Profi charging station (EL-MB-PROFI-LCD-T-OVP-S) offers an extended operating temperature from -30 °C to +50 °C, ensuring reliable charging in both cold and hot weather.
Suitable applications for the MyBox Profi station:
The MyBox Profi charging station is ideal for companies and the public sector, as well as for households that need to charge two electric vehicles simultaneously.
• Corporate fleets and company parking lots
• Hotels, restaurants, and leisure centers
• Commercial office buildings and logistics parks
• Public and municipal parking lots

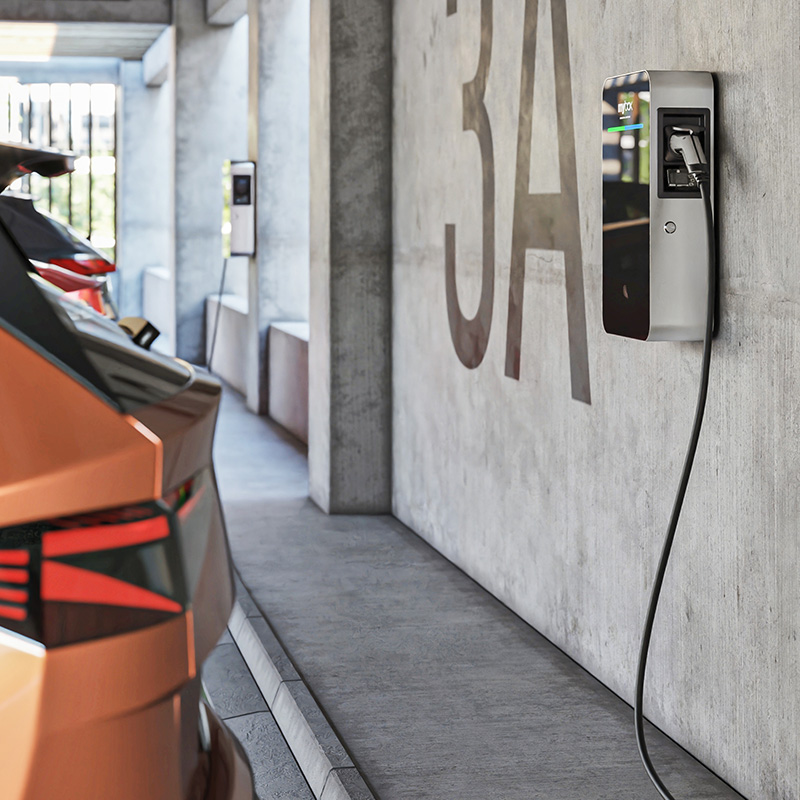

You can safely install the charging station in both indoor and outdoor spaces. Its advanced features will satisfy even demanding users.
Ready for commercial use
Thanks to full support for the OCPP (Open Charge Point Protocol), you can easily connect the MyBox Profi charging station to any wallbox management system. This gives you remote monitoring, an overview of individual users' consumption, the ability to set different tariffs, and automatic billing for employees or the public.
Charging station equipment
The equipment includes two integrated MID electricity meters, two circuit breakers with a residual current device (RCD), and a 5″ AFIR display (320 × 240 px). Note: Charging cables are not included.
The station meets current legislative requirements and is fully prepared for charging monetization.

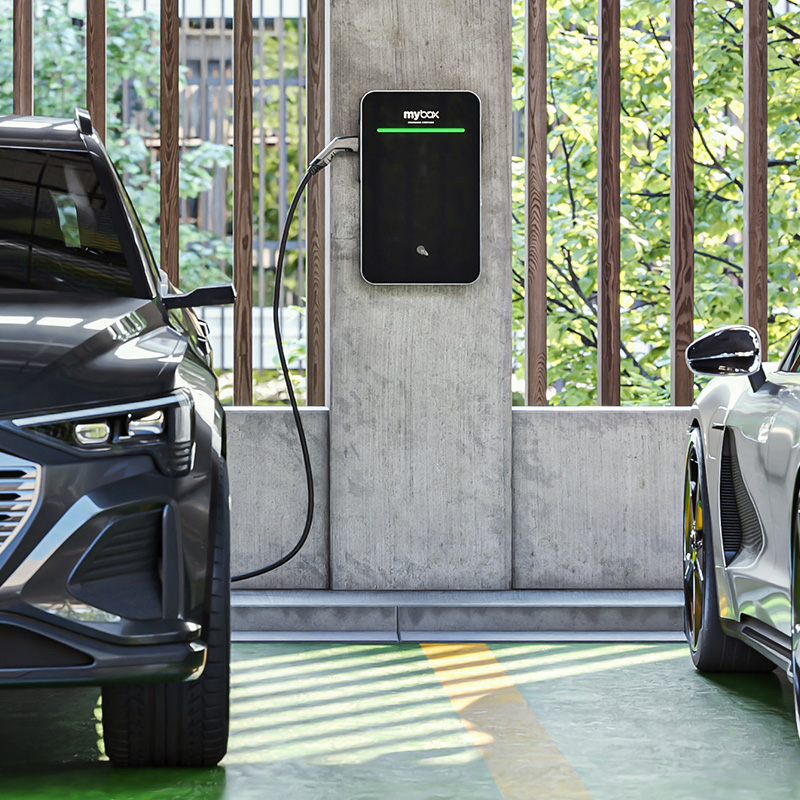

MyBox Profi: smart charging for two electric vehicles at once
A single MyBox Profi charging station reliably charges two electric vehicles or plug-in hybrids simultaneously, resulting in cost savings. The price of one double station is much lower compared to purchasing two separate wallboxes.
Since the wallbox provides a double output of 22 kW, charging will be just as fast whether one or two vehicles are charging. Furthermore, the MyBox Profi charging station allows interconnection with other stations, creating up to 12 charging points. A dynamic load balancing module can be purchased separately, which prevents the main circuit breaker from tripping even if a heat pump or other high-power appliance is turned on (within the New Green Savings subsidy, the dynamic load balancing module is a requirement).
All MyBox charging stations have a charging power of up to 22 kW. Currently, most electric vehicles utilize 11 kW of power during charging. Therefore, this station is future-proofed for when electric vehicles will utilize the high power of AC charging stations.
Power management and other advanced features
The MyBox charging station is ready for the addition of advanced features that will be appreciated by corporate or public space users:
• Dynamic load balancing module – charging power is optimized based on current electricity consumption (between stations or across the entire building)
• Authorization system – grant access to specific individuals and evaluate their charging frequency. Authorization is possible, e.g., via an RFID chip reader
• Preparation for control software connection – gain remote access to the wallbox, enabling management of both users and the station itself
• Electrical protection elements – surge protection and residual current device (RCD)
Thanks to the selection of optional accessories and advanced authorisation and management options, you can customize the charging station to your needs.
Technical specifications:
• Max. input current: 3 × 64 A
• Max. output power: 44 kW
• Max. output power per connector: 22 kW
• Max. output current per connector: 3 × 32 A
• AC output voltage: 400 V (3P+N+PE)
• Protection rating: IP54/IK10 (unplugged), IP44/IK10 (plugged in)
• Operating temperature: -30 °C to +50 °C
• Operating humidity: 5 to 95 % non-condensing
• Dimensions: 390 x 630 x 180 mm
• Station weight without cable: 25 kg
Technical parameters can be found in the attached datasheet.
