MyBox POST AC Pedestal Charging Station 2x 22 kW - 2 Sockets, OVP, Painted Steel, Without Cables
Key features:
- Chassis made of painted steel, glass, and European components.
- Secure authorization (e.g. via RFID).
- Option to integrate with a photovoltaic system.
- Advanced management options.
- Support for a dynamic load management module (optional extra).
- 2× MID-certified electricity meter.
- 2× combined circuit breaker with RCD.
- 5' AFIR display (320x240 pixels).
- Temperature kit.
- Surge protection (OVP).
- 6 mA DC leakage detection.
- Front lockable door for easy service access.
- Smart LED indicators for a perfect overview of the charging connector status.
- Communication via Ethernet or 2.4 GHz Wi‑Fi (4G/LTE optional extra).
- OCPP 1.6 communication protocol.
- Anti-vandal protection – surface finish for easy graffiti removal.
This product from the Czech manufacturer Elexim combines top-quality workmanship with the option of integration with a photovoltaic power plant (PV system). It is assembled exclusively from high-quality, readily available components from leading European manufacturers.

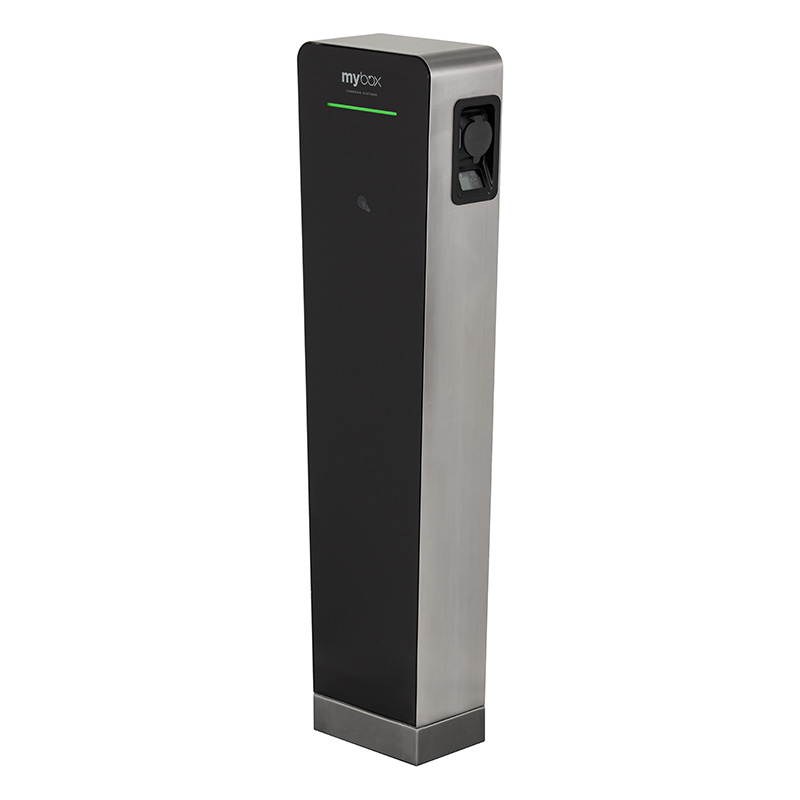

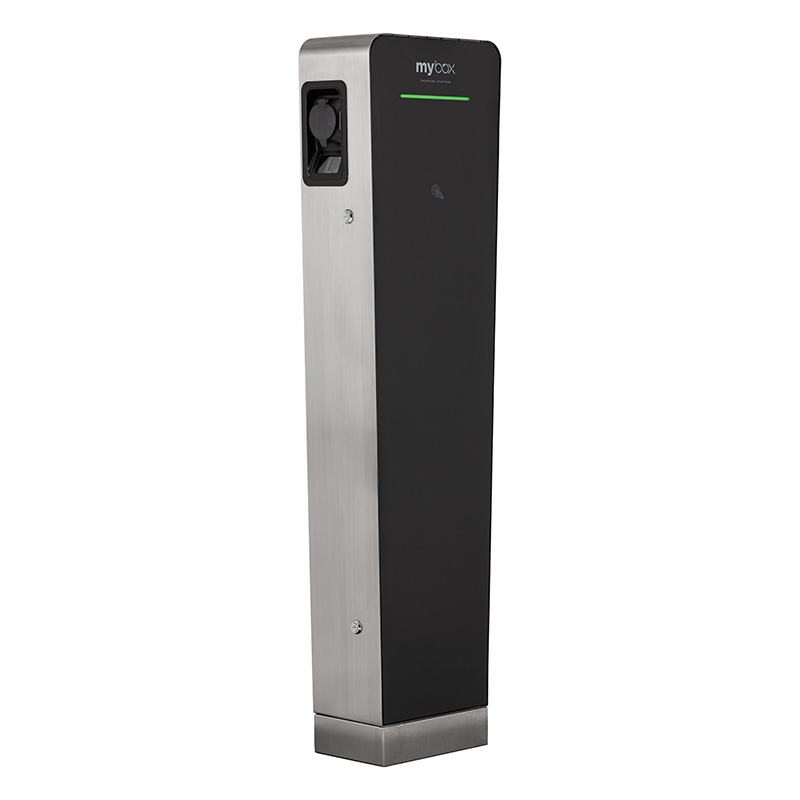

At first glance, the MyBox Post pedestal AC charging station stands out with its premium chassis made of painted steel and tempered glass. This combination of materials gives the station a luxurious appearance while also ensuring maximum safety and durability. For a more distinctive look, the station also offers the option of a custom-designed front panel.
High power for two vehicles at the same time
With an output of 2× 22 kW, the station allows simultaneous charging of two electric vehicles or plug-in hybrids. Since the MyBox Post delivers full dual output power (up to 44 kW in total), charging remains just as fast whether you connect one or two vehicles. Its advanced features, wide range of settings, and robust construction make it an ideal solution for both corporate and public charging.
In addition, it can be connected with other stations, allowing you to create a network of up to 24 charging points.
Equipment and optional expansion

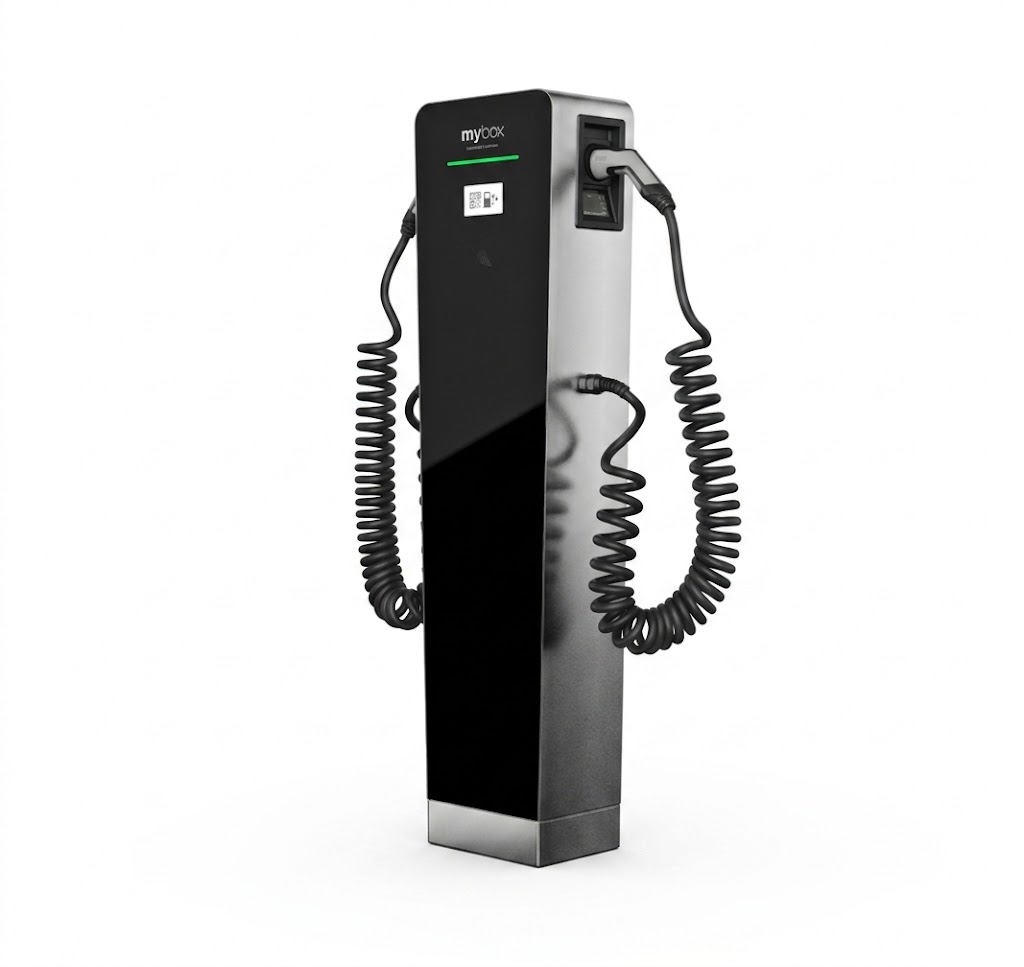

This specific configuration of the MyBox Post charging station (EL-MB-POST-OVP-LCD-S) is equipped with two Type 2 sockets (without fixed cables). Cable selection is optional: coiled or straight.
The equipment includes a temperature kit, an RFID reader with four cards, two integrated MID meters, two circuit breakers with residual current protection, and a 5″ AFIR display (320 × 240 px). The station can also be optionally supplemented with a dynamic load balancing module. This actively protects the grid and prevents the main circuit breaker from tripping even when a heat pump or another high-consumption appliance is switched on at the same time. (This module is also a requirement when applying for subsidies from the New Green Savings programme or the National Development Bank.)
Durability and flexible installation

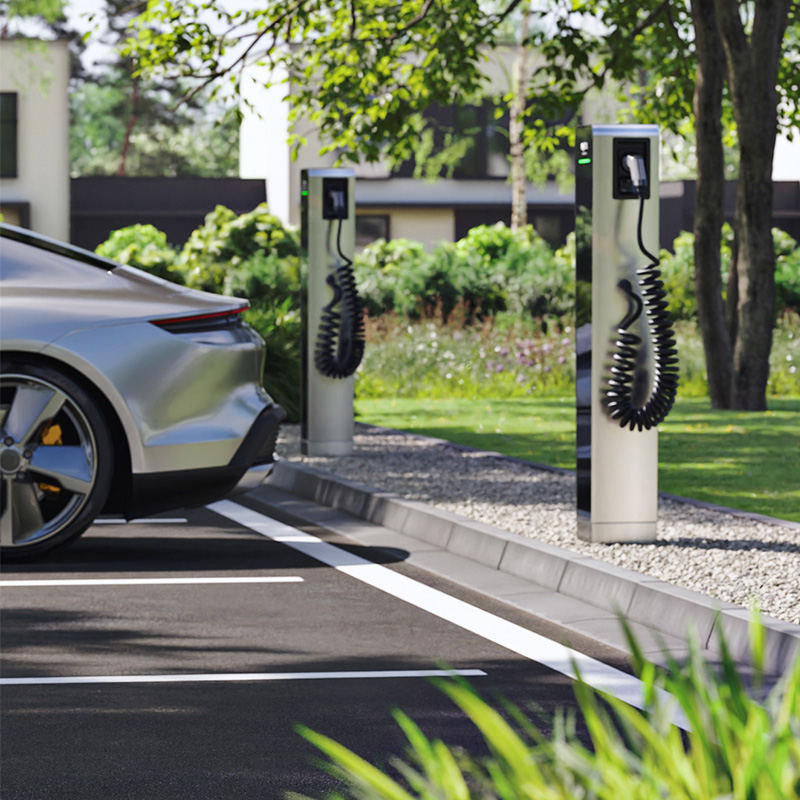

Thanks to its operating temperature range from -30 °C to +50 °C, you can reliably charge your EV battery in freezing winter weather as well as in summer heat. The station can be safely installed both indoors and outdoors.
Ready for the future
All stations in the MyBox range offer charging power of up to 22 kW per connector. Although most current electric vehicles use an 11 kW onboard charger for AC charging, the MyBox Post is a future-proof investment and is fully ready for the next generation of vehicles with higher supported input power.
Specifications:
- Max. input current: 3 × 64 A
- Max. output power: 44 kW
- Max. output power per connector: 22 kW
- Max. output current per connector: 3 × 32 A
- AC output voltage: 400 V (±10%)
- Protection rating: IP54/IK10 (not connected), IP44/IK10 (connected)
- Operating temperature: -30 °C to +50 °C
- Operating humidity: 5 to 95% non-condensing
- Dimensions: 370 × 1420 × 200 mm
- Weight of station without cable: 52 kg
Technical parameters can be found in the attached datasheet.
