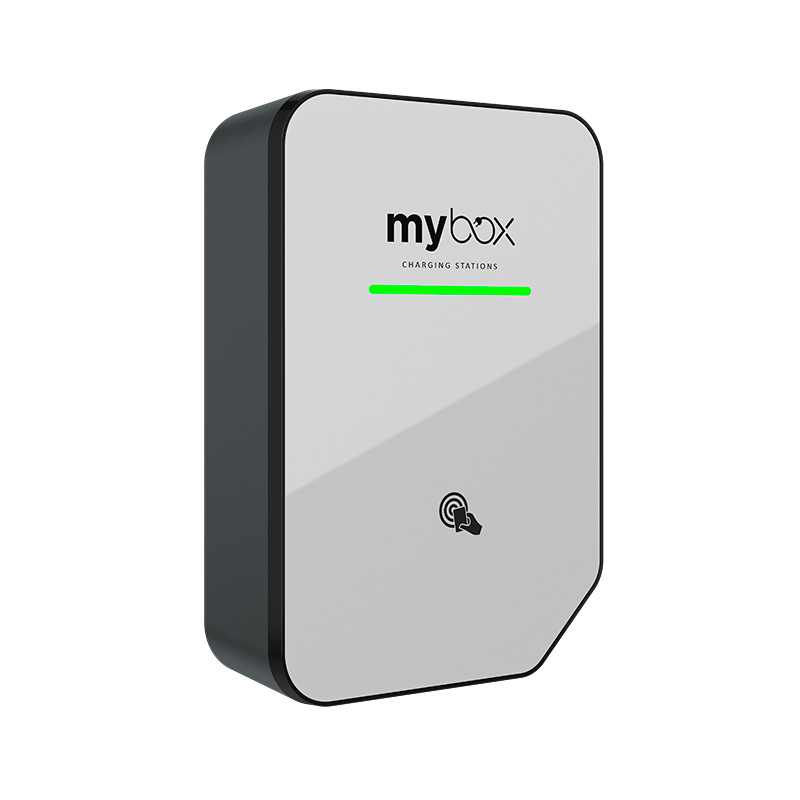

AC charging station MyBox Plus, RFID, white, without cable
Key features:
- Easy installation on the wall or pole.
- Czech product from European components.
- Possibility of connection to PV.
- Socket (Type 2) - for easy connection of your own charging cable.
- MyBox mobile application - in an instant you can find out important information about the status of the wallbox and the charging process.
- Smart LED indicators inform about the status of the charging connector. If it lights up green, you can charge.
- DC 6 mA leakage detection.
- MID-certified electricity meter.
- Communication via Ethernet or Wi-Fi network.
- OCPP protocol support.
- Dynamic power control module support (for an additional fee).
Czech product from European components
The MyBox charging station is manufactured by the Czech company Elexim exclusively from high-quality parts from leading European suppliers. It focuses on sustainability, long service life, and easily accessible service. The model is based on the parameters of the MyBox Home station, from which it differs at first glance mainly by its elegant bevelled edge.
Reliable charging in an elegant design
The MyBox Plus AC charging station stands out for its reliability and modern design with a bevelled edge that serves as a cable holder. The station delivers 22 kW of power, allowing you to unlock the full potential of any electric vehicle. This model (EL-MB-PLUSW-R-S) is not equipped with a fixed cable but with an integrated socket, making the choice of a straight or coiled cable entirely up to you. Browse our range of cables in our e-shop.
Advanced features
The wallbox is equipped with an RFID authorisation system for secure access control (two cards are included in the package).
Thanks to the option of connecting to a photovoltaic power plant (PV system), the station is ideal for households, businesses, and public locations. By purchasing the dynamic power control module, you can prevent the main circuit breaker from tripping during the operation of demanding appliances (e.g. a heat pump). The certified MID electricity meter provides an accurate overview of consumption and a high level of safety.
Durable construction and flexible mounting

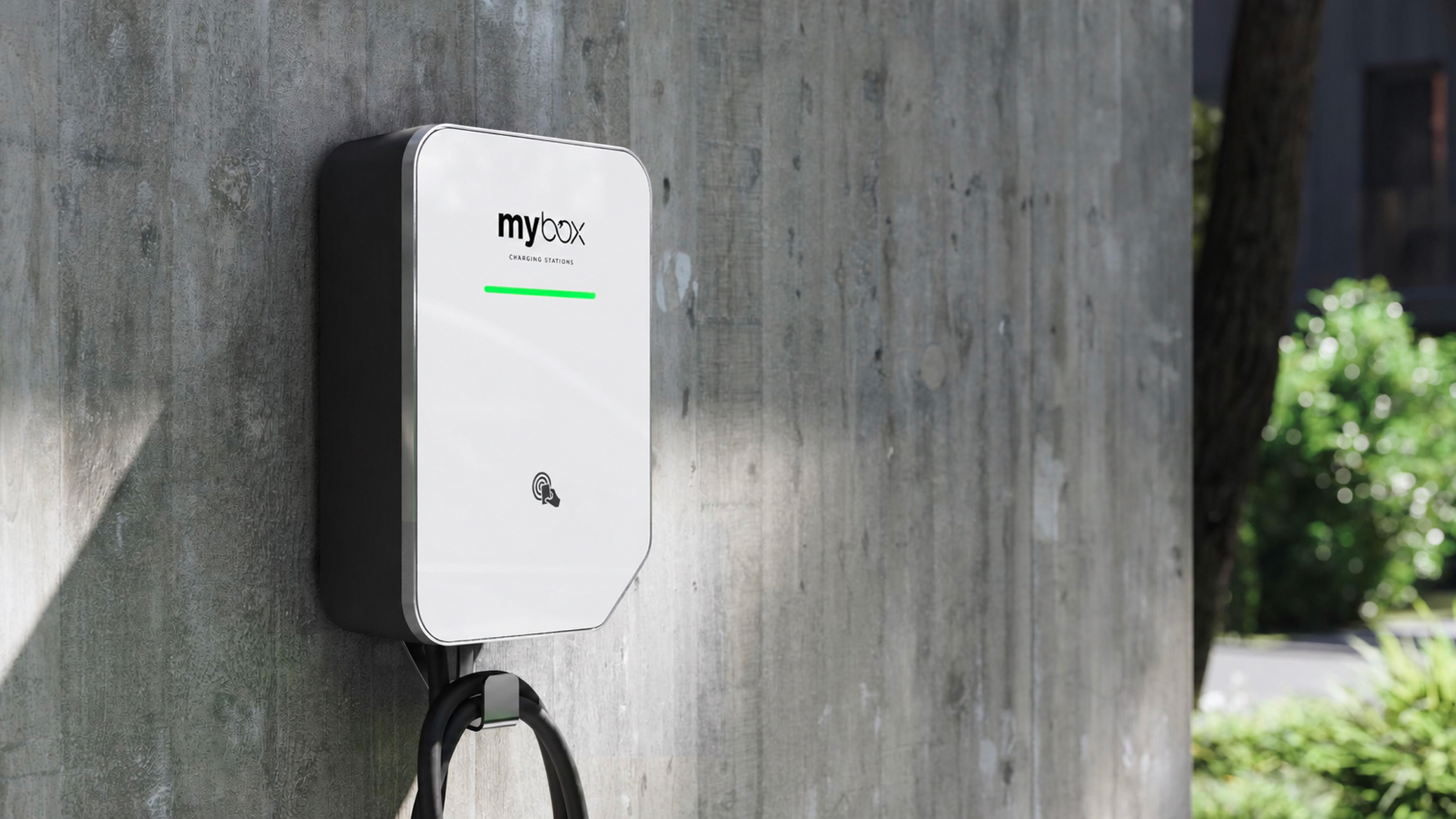

The station is made of durable plastic and tempered glass, ensuring high resistance to adverse weather conditions and mechanical damage. This station offers the option of custom front panel customisation. A wide operating temperature range (-30 °C to +50 °C) and IP54/IK10 protection rating guarantee reliable year-round operation. Mounting is possible on a wall or a separate pole. The offer is complemented by optional accessories, such as top and bottom brackets.
High performance
All MyBox charging stations deliver up to 22 kW of charging power. The MyBox Plus model provides fast charging for electric vehicles and plug-in hybrids. Since most current EVs use 11 kW, the station represents a great investment for the future, when vehicles will be able to take full advantage of AC charging.
Specifications:
- Max. input current: 3 × 32 A
- Max. output power: 22 kW
- Max. output power per connector: 22 kW
- Max. output current per connector: 3 × 32 A
- AC output voltage: 400 V (3P+N+PE)
- Protection: IP54/IK10 (not connected), IP44/IK10 (connected)
- Operating temperature: -30 °C to +50 °C
- Operating humidity: 5 to 95% non-condensing
- Dimensions: 410 × 280 × 120 mm
- Weight: 8.5 kg
Technical parameters can be found in the datasheet attached.
