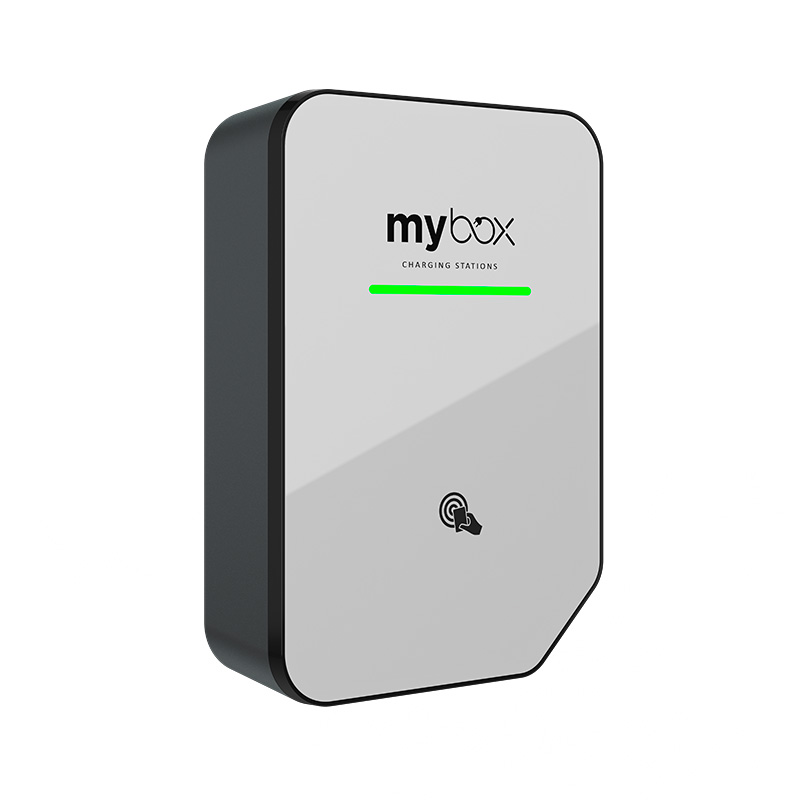

AC Charging Station MyBox Plus, white, straight Type 2 cable, RFID, 22 kW
Key Features
- Easy wall and pole mounting.
- Czech product made of European components.
- Option to connect to a PV system (photovoltaics).
- RFID authorisation system.
- MID electricity meter.
- MyBox mobile app – get essential information about the wallbox status and charging progress in an instant.
- Smart LED indicators display the status of the charging connector. If they light up green, you are ready to charge.
- Communication via Ethernet or Wi-Fi network.
- OCPP 1.6 protocol support.
- Support for a dynamic power management module (available at an additional cost).
This robust charging station MyBox Plus in an elegant white design features a modern bevelled shape, with a cable storage socket integrated into its edge. It is an ideal choice for family homes, company parking lots, and public areas exposed to a higher risk of damage or heavy traffic.
Quality Czech product with European components
The MyBox charging station is manufactured by the Czech company Elexim using exclusively high-quality components from leading European suppliers. Emphasis is placed on sustainability, long-term functionality, and hassle-free servicing. In terms of parameters, this model is similar to the MyBox Home wallbox, from which it differs mainly in its elegant bevelled design.
Type 2 Charging Cable
The wallbox features a hardwired 5-meter straight cable with a Type 2 connector, providing a charging power of up to 22 kW.
Controls, Connectivity, and RFID Authorisation
Access to the station is securely controlled by an authorisation system with an RFID reader and two cards included in the package. Thanks to Ethernet or Wi-Fi connectivity and support for the OCPP 1.6 protocol, you gain remote access and user management. The MyBox mobile app is used to control the wallbox and display details about the charging progress. Smart LED indicators directly on the station inform you of the connector status.
Advanced Features and Smart Integration
You can easily connect the station to a photovoltaic (PV) system, allowing you to utilise surplus energy and significantly reduce operating costs. A major advantage is also the option to integrate it into a SmartHome system for convenient control of all devices from one place. Additionally, a dynamic power management module can be purchased for the wallbox to prevent the main circuit breaker from tripping even when running energy-demanding appliances such as a heat pump.
Durable Design and Safe Installation
The construction made of durable plastic and white glass effectively resists mechanical damage and adverse weather conditions. This station offers the option of custom front panel customisation. A wide operating temperature range from -30 °C to +50 °C and an IP54/IK10 protection rating guarantee reliable year-round operation. The station can be safely mounted on a wall or a standalone pole in both indoor and outdoor areas. We also offer optional accessories such as upper and lower brackets.
Technical Specifications
- Max. input current: 3 × 32 A
- Max. output power: 22 kW
- Max. output power per connector: 22 kW
- Max. output current per connector: 3 × 32 A
- AC output voltage: 400 V (3P+N+PE)
- IP/IK rating: IP54/IK10 (unplugged), IP44/IK10 (plugged in)
- Operating temperature: -30 °C to +50 °C
- Operating humidity: 5% to 95% (non-condensing)
- Dimensions: 410 × 280 × 120 mm
- Station weight without cable: 8.5 kg
Detailed technical information can be found in the attached datasheet.
