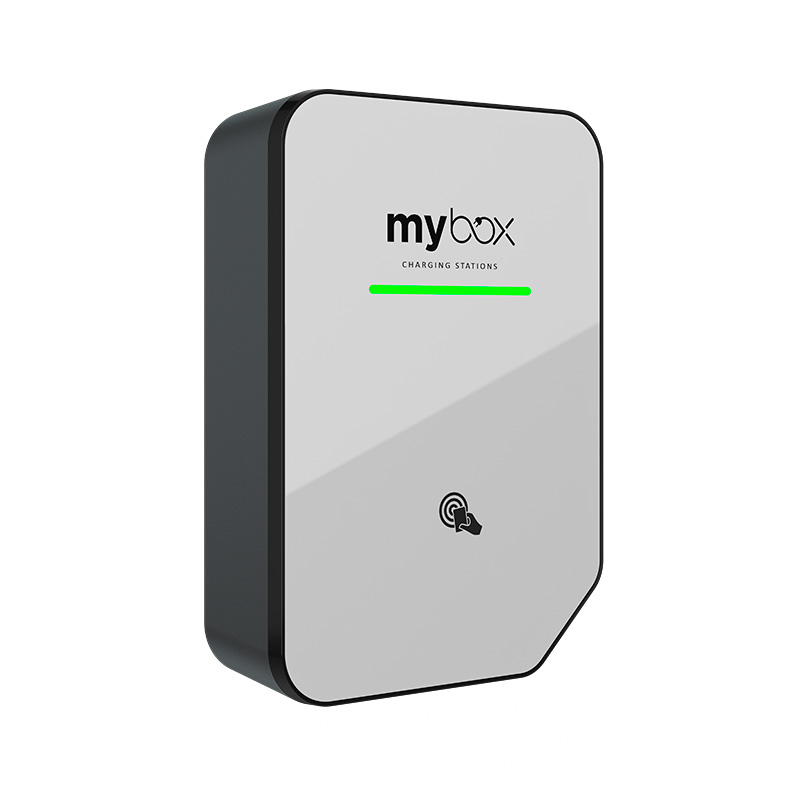

AC Charging Station MyBox Plus, white, straight Type 2 cable, RFID, 11 kW
Key Features
- Easy wall and pole mounting.
- Czech product made from European components.
- Option to connect to a photovoltaic (PV) system.
- Socket (Type 2) – for easy connection of your own charging cable.
- RFID authorisation system.
- MID-certified electricity meter.
- MyBox mobile app – get essential information about the wallbox status and charging progress in an instant.
- Smart LED indicators display the status of the charging connector. If they light up green, you are ready to charge.
- Communication via Ethernet or Wi-Fi network.
- OCPP protocol support.
- Support for a dynamic power management module (available at an additional cost).
This durable and reliable AC charging station MyBox Plus in white features a modern design with a bevelled edge, which also serves as a practical charging cable holder. It is suitable for use in households, businesses, and public areas where there is a higher risk of vandalism or mechanical wear and tear.
High-quality Czech product with European components
The MyBox charging station is manufactured by the Czech company Elexim, using exclusively high-quality components from leading European suppliers. Emphasis is placed on sustainability, long-term functionality, and hassle-free servicing. In terms of parameters, this model is similar to the MyBox Home wallbox, from which it differs mainly in its elegant bevelled design.
Type 2 Charging Cable
The wallbox features a hardwired 5-meter straight cable with a Type 2 connector, providing a charging power of up to 11 kW.
Controls, Connectivity, and RFID Authorisation
Access to the station is securely controlled by an authorisation system with an RFID reader and two cards included in the package. Thanks to Ethernet or Wi-Fi connectivity and OCPP 1.6 protocol support, you gain remote access and user management. The MyBox mobile app is used to control the wallbox and display charging progress details. Smart LED indicators directly on the station inform you about the connector status.
Advanced Features and Smart Integration
You can easily connect the station to a photovoltaic (PV) power plant, utilise surplus energy, and significantly reduce operating costs. A major advantage is also the option to integrate it into a SmartHome system for convenient control of all devices from one place. A dynamic power management module can be purchased for the wallbox, preventing the main circuit breaker from tripping even when energy-intensive appliances, such as a heat pump, are running.
Durable Design and Safe Installation

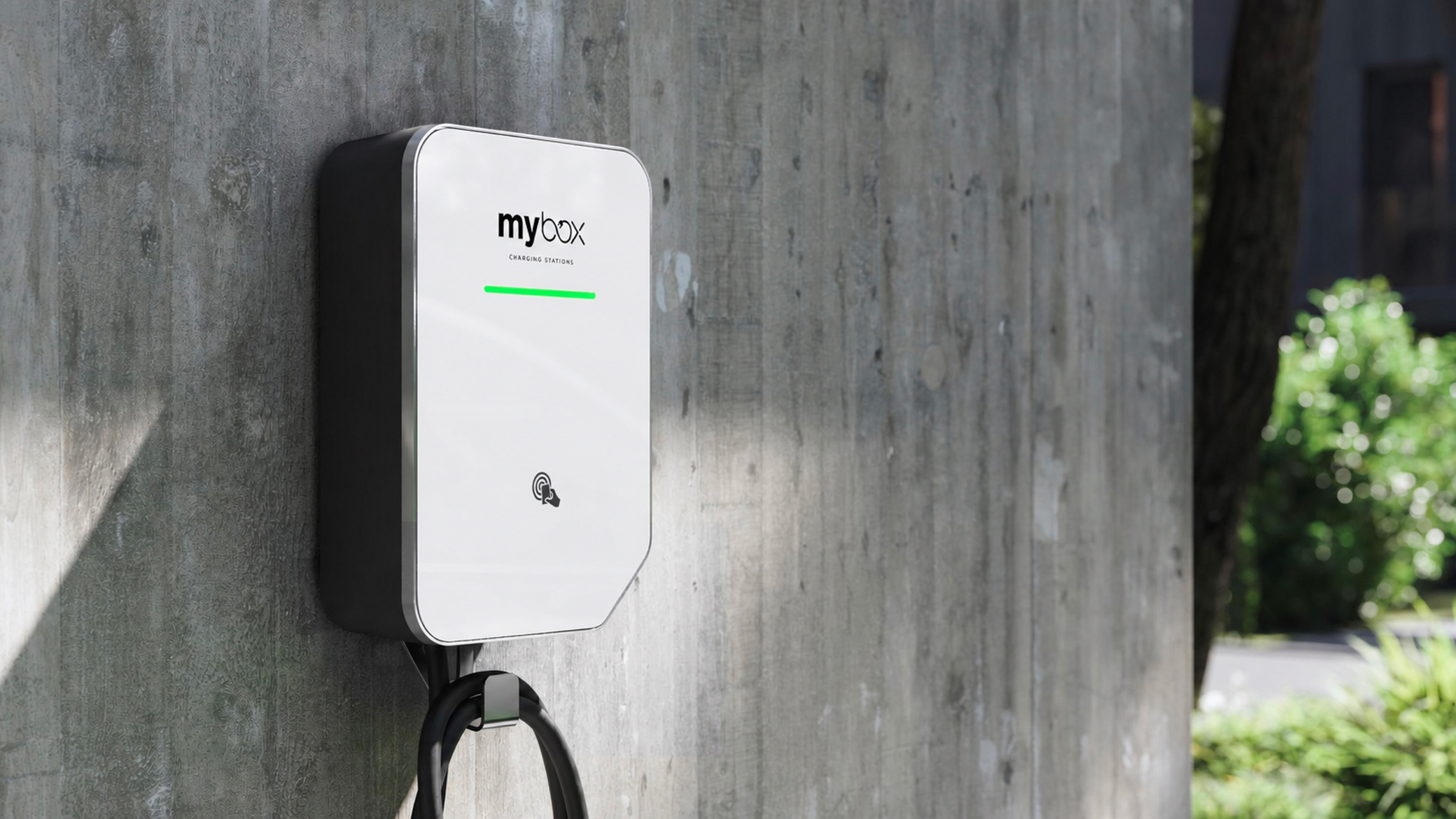

The construction made of durable plastic and white glass (with the option of custom printing) effectively resists mechanical damage and adverse weather conditions. This station offers the option of custom front panel customisation. A wide operating temperature range from -30 °C to +50 °C and IP54/IK10 protection ratings guarantee reliable operation all year round. The station can be safely mounted on a wall or a standalone pole in both indoor and outdoor environments. We also offer optional accessories such as upper and lower brackets.
Technical Specifications
- Max. input current: 3 × 16 A
- Max. output power: 11 kW
- Max. output power per connector: 11 kW
- Max. output current per connector: 3 × 16 A
- AC output voltage: 400 V (3P+N+PE)
- IP/IK rating: IP54/IK10 (unplugged), IP44/IK10 (plugged in)
- Operating temperature: -30 °C to +50 °C
- Operating humidity: 5% to 95% (non-condensing)
- Dimensions: 410 × 280 × 120 mm
- Station weight without cable: 7.5 kg
Detailed technical information can be found in the attached datasheet.
