Numer katalogowy : AO-LA-N
Producent: SECTRON

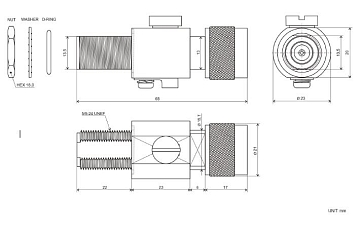

Lightning arrestor N(m)/N(f)

Numer katalogowy : AO-LA-N
Producent: SECTRON

Lightning arrestor N(m)/N(f)

A lightning arrester is a device that protects electrical equipment and devices from lightning strikes.

88.36 PLN (20.07 €) z VAT (23%) / szt.

bez VAT 73.02 PLN / szt.

Cena od 10 sztuk 15.76 €

Cena od 100 sztuk 14.93 €

Na magazynie
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Lightning arrestor - N(m)/N(f)

A lightning arrester is a device that protects electrical equipment and devices from damage by electrical surge and direct and indirect lightning strikes.

Compatible with N(m) and N(f) RF connectors.

Reliable lightning arrester is designed for broadband use 0-6 GHz, insulation resistance is ≥ 10000 MΩ.

Features:

• Frequency range:  0-6 GHz
VSWR:  1:1.3
• Insertion loss:  0.5 dBi
• Impedance:  50 Ω
• Insulation resistance:  ≥ 10000 MΩ
• Max withstand current:  20 A
• Gas tube impulse breakdown voltage:  ≤ 700 V
 Tolerance on the breakdown voltage:  DC 230 V ± 20%
• RF power rating:  15 W

Technical parameters can be found in the attached datasheet.

Parametry

Złącze N(f) VSWR 1.3 Max
