50 channel GPS receiver
50 channel GPS receiver equipped with U-blox G6010 chipset, with very high reception sensitivity of up to -161 dBm.
The integrated low noise amplifier (LNA) provides an excellent signal amplification in the L1 band (1575.42 MHz). Built-in SuperCaP helps maintain ephemeris position data to help find satellites faster.
For very convenient data reception, this receiver is equipped with standard USB 2.0 connectors or. 2.5 / 3.5 Jack. The allowed baud rate is 4800/9600/38400 bps. Received data are in NMEA 0183 GGA, GSA, GSV, RMC, VTG, GLL protocol format. This raw data must be further processed in the relevant software / application.
The accuracy of the device is given at a distance of less than 2 meters. The power supply limit is in the range of 3.3V-5V DC.

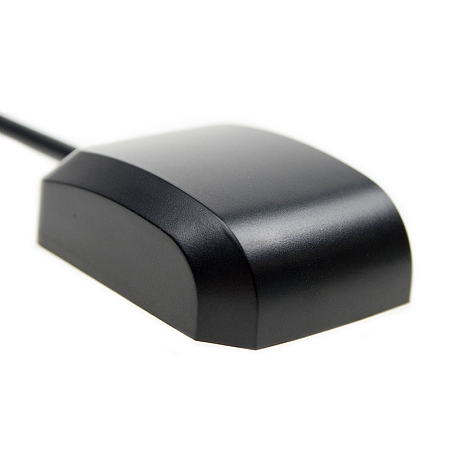

The GPS receiver GP-G217-USB is supplied with a 5m cable that has a USB 2.0 connector.
Technical parameters can be found in the attached datasheet.
