Numer katalogowy : AO-BMT-04
Producent: SECTRON

Connector SMB(m) R/A, THD

Numer katalogowy : AO-BMT-04
Producent: SECTRON

Connector SMB(m) R/A, THD

Connector SMB(m) R/A, THD

279.88 PLN (63.59 €) z VAT (23%) / szt.

bez VAT 231.30 PLN / szt.

Cena od 10 sztuk 47.29 €

Cena od 100 sztuk 42.62 €

Na magazynie
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

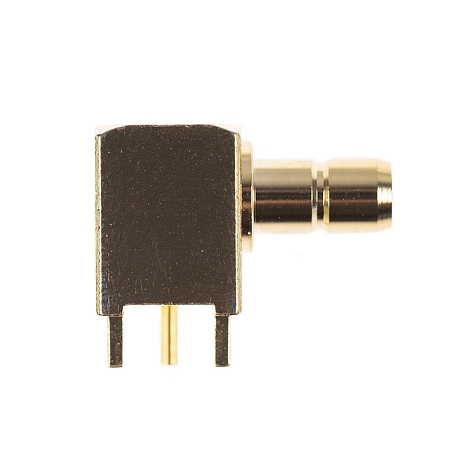

Connector SMB (m) R/A, THD

SMB coaxial connectors are characterized by high reliability and mechanical stability. Snap-on mechanism provides fast and reliable connection. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 4 GHz. They are used, for example, to connect wireless WLAN devices, test devices and GSM / GPS / Wi-Fi antennas.

The connector SMB (m) R/A is designed for mounting on a PCB using the THD method.

Material and finish:

• Ferrule: brass / gold over nickel
• Pin contact: brass / gold over nickel
• Insulator: PTFE / -
• Body: beryllium copper / gold over nickel

Parameters:

 • Type: Male (m)
 • Impedance: 50 Ω
 • Maximum Frequency: 0-6 GHz
 • Insulation Resistance: 1 000 MΩ
 • Outer contact: 1 MΩ
 • Center contact: 5 MΩ
 • Mating Cycles: 500
 • Operating Temperature: - 65 °C to + 165 °C

Technical parameters can be found in the attached datasheet or contact our sales department.


Parametry

279.88 PLN (63.59 €) z VAT (23%) / szt.

bez VAT 231.30 PLN / szt.
