Numer katalogowy : AO-FME-EDGE
Producent: SECTRON

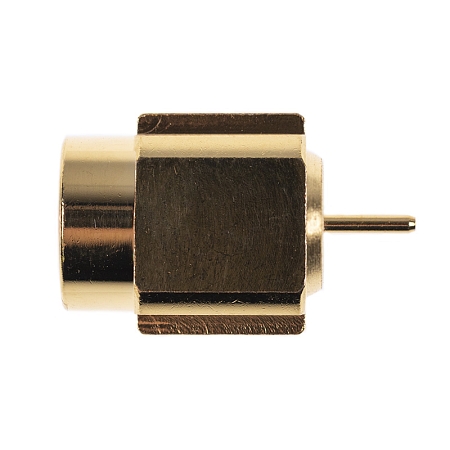

Connector FME(m) for PCB, EDGE

Numer katalogowy : AO-FME-EDGE
Producent: SECTRON

Connector FME(m) for PCB, EDGE

The FME (m) connector is for mounting and soldering to the panel.

9.33 PLN (2.12 €) z VAT (23%) / szt.

bez VAT 7.71 PLN / szt.

Cena od 10 sztuk 1.58 €

Cena od 100 sztuk 1.42 €

Na magazynie
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Connector FME(m) for PCB, EDGE

FME coaxial connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 2 GHz. Temperature range is -65 °C to +155 °C. Thanks to their compact size and long longevity, the FME connectors are used in the field of mobile communications as well as for GSM antennas. They are suitable for installation in vehicles as well.

The FME (m) connector is for mounting and soldering to the panel.

Parameters:

• Type: Male (m)
• Impedance: 50 Ω
VSWR: <1.3: 1
• Insulation resistance: 5 000 MΩ
• Maximum frequency: 0-2 GHz
 Mating cycles: 500 cycles
• Operating temperature: - 65 °C to + 155 °C
• Weight: 5.93 g

Technical parameters can be found in the attached datasheet or contact our sales department.

9.33 PLN (2.12 €) z VAT (23%) / szt.

bez VAT 7.71 PLN / szt.
