Numer katalogowy : AO-FMTD-01
Producent: SECTRON

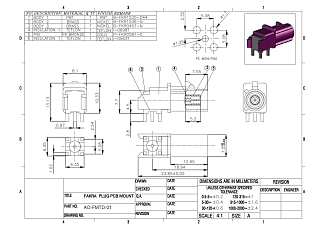

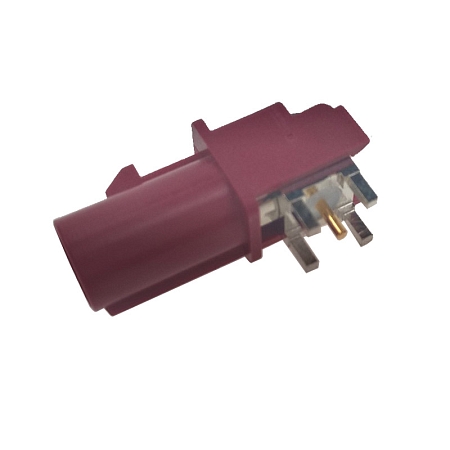

Connector FAKRA(m) D right angle, THD

Wyprzedaż
Numer katalogowy : AO-FMTD-01
Producent: SECTRON

Connector FAKRA(m) D right angle, THD

FAKRA connector type D, angle is designed for mounting and soldering to the panel using the THD method.

5.26 PLN (1.20 €) z VAT (23%) / szt.

bez VAT 4.35 PLN / szt.

Na magazynie
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Connector FAKRA (m) angled, type D, mounting method THD

FAKRA connectors in a plastic housing. These housings are available in 14 different colors for easy identification. The characteristic impedance of the connector is 50 Ohm, working frequency ranges up to 6 GHz, working temperature is from -40 °C to 105 °C. FAKRA connectors are most often used in the automotive industry, for example for connecting antennas, radios, navigation. They are also widely used in M2M and IoT devices. Connecting and disconnecting FAKRA connectors is easy, we guarantee up to 25 cycles.

FAKRA connector type D, angle is designed for mounting and soldering to the panel using the THD method.

Material and finish:

• Body 1: PBT / PBT
• Body 2: brass / nickel
• Body 3: brass / nickel
• Insulation: teflon / teflon
• PIN: beryllium copper / gold

Parameters:

• Type: Male (m)
• Impedance: 50 Ω
• Maximum frequency: 0-6 GHz
• Insulation resistance: 5 000 MΩ
 Voltage working: 335 V
 Mating cycles: 25
• Operating temperature: -40 °C to 105 °C

Technical parameters can be found in the attached datasheet or contact our sales department.
