Numer katalogowy : AO-FMTC-01
Producent: SECTRON

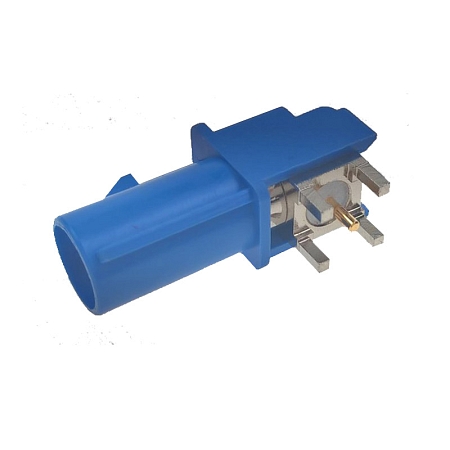

Connector FAKRA(m) C right angle, THD

Wyprzedaż
Numer katalogowy : AO-FMTC-01
Producent: SECTRON

Connector FAKRA(m) C right angle, THD

FAKRA connector type C, angle is designed for mounting and soldering to the panel using the THD method.

5.26 PLN (1.20 €) z VAT (23%) / szt.

bez VAT 4.35 PLN / szt.

Na magazynie
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

FAKRA connector, C angle, THD

FAKRA connector in a plastic housing. These housings are available in 14 different colours for easy identification. The characteristic impedance of the connector is 50 Ohm, working frequency ranges up to 6 GHz and working temperature is from -40 °C to 105 °C. FAKRA connector is most often used in the automotive industry, for example for connecting antennas, radios and navigation. They are also widely used in M2M and IoT devices. FAKRA connector is also employed in non-automotive applications that require high-frequency signal transmissions, such as wireless communications, industrial machinery, and medical devices. Connecting and disconnecting the FAKRA connector is easy, we guarantee up to 25 cycles.

FAKRA connector type C, angle is designed for mounting and soldering to the panel using the THD method.

Material and finish:

• Body 1: PBT / PBT
• Body 2: brass / nickel
• Body 3: brass / nickel
• Insulation: teflon / teflon
• PIN: beryllium copper / gold

Parameters:

• Type: Male (m)
• Impedance: 50 Ω
• Maximum frequency: 0-6 GHz
• Insulation resistance: 5 000 MΩ
 Voltage working: 335 V
 Mating cycles: 25
• Operating temperature: -40 °C to 105 °C

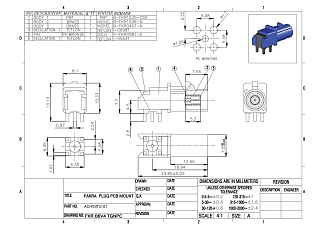

Technical parameters can be found in the attached datasheet or contact our sales department.
