Numer katalogowy : WM-TRBLU23

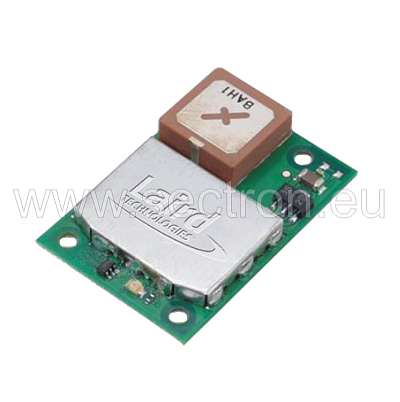

BISM II - Bluetooth Serial Module II

Numer katalogowy : WM-TRBLU23

BISM II - Bluetooth Serial Module II

The Ezurio TRBLU23 module provides a reliable Bluetooth 2.0 connection. This module features an excellent range of up to 300 meters and very low power consumption (less than 36 mA).

191.40 PLN (43.60 €) z VAT (23%) / szt.

bez VAT 158.19 PLN / szt.

Zapytani
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Ezurio TRBLU23  - 2.4 GHz Bluetooth Module

(Laird Connectivity changed name to Ezurio)

The TRBLU23 module is specifically designed for applications where robust short range connectivity is required.provides a reliable Bluetooth 2.0 connection. This module features an excellent range of up to 300 meters and very low power consumption (less than 36 mA).

Key features:

• Best-in-class range provides open field connectivity in excess of 300 meters
• Integrated high-performance ceramic antenna
• Adaptive frequency hopping to cope with interference from other wireless products
• Optimised receive sensitivity to provide long range initial connections that largely eliminate connection hysteresis
• Operating temperature range of -40°C to +85°C
• Data transfer rate up to 300 kbps
• Fully approved product
• Class 1 version 2.0 Bluetooth
• Receive sensitivity better than -84 dBm
• Support for 128 bit encryption
• Non-discoverable modes
• 40 way Hirose connector
• 2 X 8 bit ADCs
• 9 X GPIO
• Low power modes
• Supports Wi-Fi co-existence
• Embedded Bluetooth stack
• Integrated antenna with up to 300m range
• External antenna version available

More information can be found in the attached datasheet.

Parametry

Orzecznictwo RoHS Zasilanie 3.3 V  V
Częstotliwość robocza 2402-2480  MHz
