Numer katalogowy : AO-1SKF-5923
Producent: SECTRON

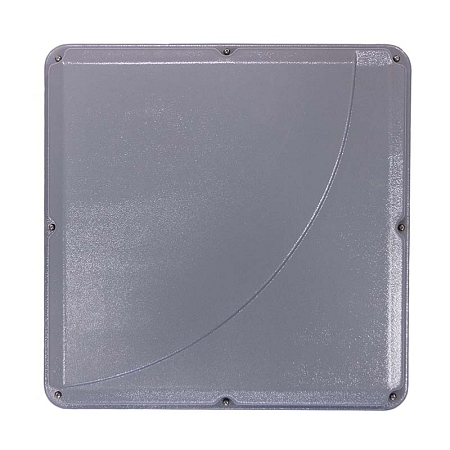

Antenna WiFi PANEL 5923, 5.1-5.9 GHz, 23 dBi, N(f)

Wyprzedaż
Numer katalogowy : AO-1SKF-5923
Producent: SECTRON

Antenna WiFi PANEL 5923, 5.1-5.9 GHz, 23 dBi, N(f)

Directional outdoor antenna for WLAN technologies. The antenna operates in bands 5100/5300/5400/5800/5900 MHz.

806.10 PLN (182.98 €) z VAT (23%) / szt.

bez VAT 666.20 PLN / szt.

Na magazynie < 10 szt.
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Directional Wifi antenna

The directional outdoor antenna with a gain of 23 dBi is designed for signal reception in WiFi technology. The antenna operates in bands 5100/5300/5400/5800/5900 MHz and is equipped with an N (f) connector. Thanks to its precise construction, this antenna has an excellent weather resistance which makes it suitable for outdoor installations.

Connector specifications N:

Connectors with a screw-thread mechanism. N connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 11 GHz. Temperature range is -40 °C to +80 °C. N connectors are used, for example, to connect wireless WLAN devices, satellite systems and GSM / GPS / Wi-Fi antennas.

Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Złącze N(f)
Polaryzacja Liniowy Wykonanie Zewnętrzny
Temperatura robocza -40 ~ +80  °C Wymiary 370 x 370 x 35  mm
Kierunkowość Kierunkowa Technologia WiFi
Waga 1350  g Zysk 23  dBi
VSWR <1.5:1 Kąt nadawania H 360 V 30
Sposób mocowania Śrubowe

806.10 PLN (182.98 €) z VAT (23%) / szt.

bez VAT 666.20 PLN / szt.
