Numer katalogowy : AW-A24G-G016WMCX
Producent: SECTRON

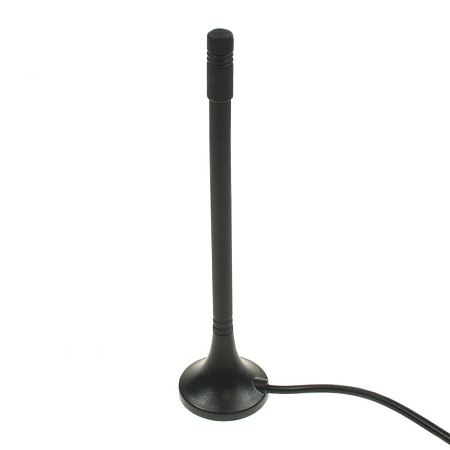

Antenna WiFi Magnetic 016W, 2 dBi, MCX(m) straight, RG174/3m

Numer katalogowy : AW-A24G-G016WMCX
Producent: SECTRON

Antenna WiFi Magnetic 016W, 2 dBi, MCX(m) straight, RG174/3m

Omnidirectional WiFi magnetic antenna operates in band 2.4 GHz. It is suited for cellular routers.

27.59 PLN (6.27 €) z VAT (23%) / szt.

bez VAT 22.80 PLN / szt.

Na magazynie
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Omnidirectional WiFi antenna

Omnidirectional WiFi magnetic antenna operates in band 2.4 GHz. It is suited for cellular routers. The antenna has a magnetic base. It is supplied with 3 m cable with MCX(m) connector.

Connector specifications MCX:

These are coaxial connectors with latch mechanism. Compatible with SMB connectors, but they are also 30% smaller than SMB connectors. The dimensions of the internal contact and the insulator are the same. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 6 GHz. They are characterized by high reliability and mechanical stability. They are also used as standard connectors in GPS devices, WLAN networks, fixed and mobile communications.

Cable specifications RG174 / U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Kabel RG174/U
Złącze MCX(m) Maksymalna moc wejściowa 10  W
Polaryzacja Liniowy Wykonanie Zewnętrzny
Temperatura robocza -40 ~ +85  °C Wymiary 121 x 29.4  mm
Kierunkowość Dookólna Technologia WiFi
Waga 51.54  g Zysk 2  dBi
VSWR <2.0:1 Kąt nadawania H 360 V 30
Sposób mocowania Magnetyczne
