Numer katalogowy : AO-AKOM-40WP-SS
Producent: SECTRON

Antenna WiFi/GPS/GLONASS Adhesive R40, 2x RG174/5m, 2x SMA(m)

Wyprzedaż
Numer katalogowy : AO-AKOM-40WP-SS
Producent: SECTRON

Antenna WiFi/GPS/GLONASS Adhesive R40, 2x RG174/5m, 2x SMA(m)

Combined adhesive antenna, designed for signal reception in WIFI/GPS/GLONASS technologies. The antenna operates in bands 2400/1575.42/1602 MHz.

169.09 PLN (38.51 €) z VAT (23%) / szt.

bez VAT 139.75 PLN / szt.

Na magazynie < 10 szt.
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

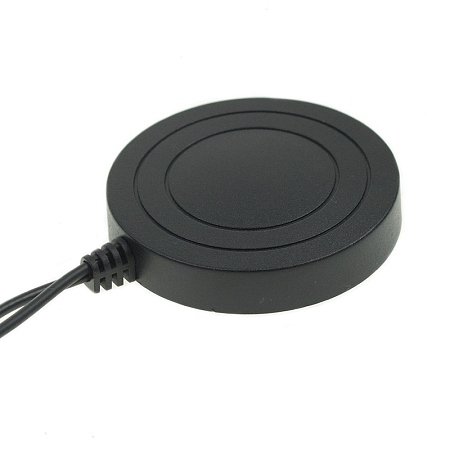

Combined adhesive WIFI/GPS/GLONASS antenna

Combined adhesive antenna, designed for signal reception in WIFI/GPS/GLONASS technologies. The antenna operates in bands 2400/1575.42/1602 MHz. In combination with an amplifier, this active antenna achieves a gain of up to 30 dB in GPS band. It is suitable for use in cars and other vehicles. Comes with 3M double-sided tape for easy mounting on glass or plastic. It is supplied with two 5 m cable RG174/U with two SMA(m) connector.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications RG174 / U:

The cable labeled RG174 / U is a much cheaper variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. It is mainly used for the frequency range 0 - 1 GHz, it can also be used for higher frequencies, but at the cost of higher attenuation – see the attached attenuation table below. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 ° C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Kabel RG174/U
Złącze SMA(m) , SMA(m) Maksymalna moc wejściowa 10  W
Napięcie 2.7 - 5.5 V DC Polaryzacja R.H.C.P. , Liniowy
Wykonanie Zewnętrzny Temperatura robocza -30 ~ +90  °C
Wymiary 71 x 12  mm Kierunkowość Dookólna
Technologia WIFI , GPS , GLONASS Waga 142.8  g
Zysk 2  dBi , 30  dBi VSWR <2.0:1
Kąt nadawania H-360 V-30 Sposób mocowania Przyklejana
