Numer katalogowy : AW-A2458G-S2S-Y
Producent: SECTRON

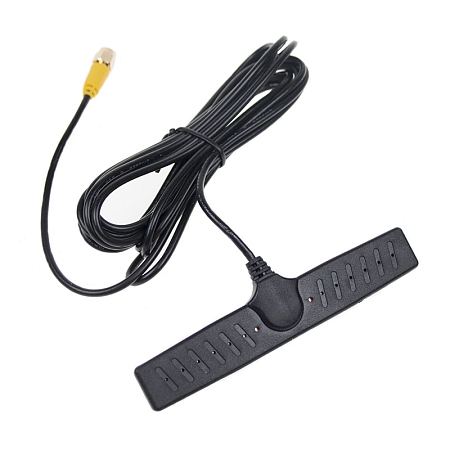

Antenna WiFi Adhesive, 2.4/5.8GHz, 2.5dBi, SMA(m), yellow shrink tube, RG174/3m

Numer katalogowy : AW-A2458G-S2S-Y
Producent: SECTRON

Antenna WiFi Adhesive, 2.4/5.8GHz, 2.5dBi, SMA(m), yellow shrink tube, RG174/3m

Omnidirectional adhesive WiFi antenna operates in bands 2.4 GHz and 5.8 GHz. It is suited for cellular routers.

33.88 PLN (7.82 €) z VAT (23%) / szt.

bez VAT 28.00 PLN / szt.

Na magazynie
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Omnidirectional WiFi antenna

Omnidirectional adhesive WiFi antenna operates in bands 2.4 GHz and 5.8 GHz. It is suitable for WiFi networks in homes and offices, where it provides connections to modems and routers. Comes with 3M double-sided tape for easy mounting on glass or plastic. It is supplied with 3 m cable with SMA (m) connector.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications RG174 / U:

The cable labeled RG174 / U is a much cheaper variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. It is mainly used for the frequency range 0 - 1 GHz, it can also be used for higher frequencies, but at the cost of higher attenuation – see the attached attenuation table below. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 ° C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Kabel RG174/U
Złącze SMA(m) Maksymalna moc wejściowa 10  W
Polaryzacja Liniowy Wykonanie Zewnętrzny
Temperatura robocza -30 ~ +80  °C Wymiary 108 x 18  mm
Kierunkowość Dookólna Technologia WiFi
Waga 50.39  g Zysk 2.5  dBi
VSWR <2.0:1 Kąt nadawania H 360 V 30
Sposób mocowania Przyklejana
