Numer katalogowy : AO-AUMTS-G825M
Producent: SECTRON

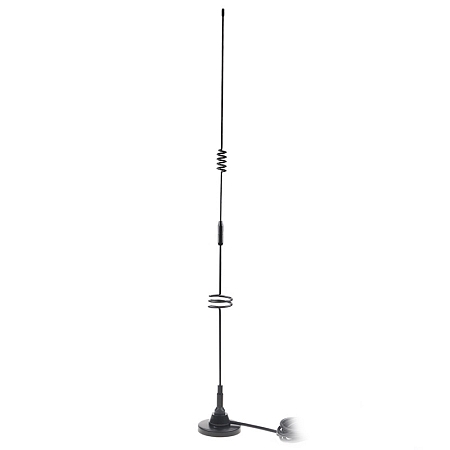

Antenna UMTS/GSM Magnetic G825, 7 dBi, MCX(m)90°, RG174/2.5m

Numer katalogowy : AO-AUMTS-G825M
Producent: SECTRON

Antenna UMTS/GSM Magnetic G825, 7 dBi, MCX(m)90°, RG174/2.5m

Omnidirectional antenna is suited for receiving GSM/UMTS signals. The antenna operates in band 800/900/1800/2100 MHz.

127.98 PLN (29.08 €) z VAT (23%) / szt.

bez VAT 105.77 PLN / szt.

Na magazynie
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Omnidirectional GSM/UMTS antenna

Omnidirectional antenna is suited for receiving GSM/UMTS signals. The antenna operates in band 800/900/1800/2100 MHz. It is suitable for modems/routers. It is supplied with 2.5 m cable RG174/U  with MCX(m)90°connector. The antenna base can have a magnetic base.

Connector specifications MCX:

These are coaxial connectors with latch mechanism. Compatible with SMB connectors, but they are also 30% smaller than SMB connectors. The dimensions of the internal contact and the insulator are the same. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 6 GHz. They are characterized by high reliability and mechanical stability. They are also used as standard connectors in GPS devices, WLAN networks, fixed and mobile communications.

Connector specifications RG174/U:

The cable labeled RG174/U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Kabel RG174/U
Złącze MCX(m) R/A Maksymalna moc wejściowa 5  W
Polaryzacja Liniowy Wykonanie Zewnętrzny
Temperatura robocza -40 ~ +85  °C Wymiary 70.2 x 675  mm
Kierunkowość Dookólna Technologia GSM , UMTS
Waga 347.17  g Zysk 7  dBi
VSWR <2.0:1 Sposób mocowania Magnetyczne
Orzecznictwo ISO 14001 , ISO 9001 Stopień ochrony IP IP67

127.98 PLN (29.08 €) z VAT (23%) / szt.

bez VAT 105.77 PLN / szt.
