Numer katalogowy : AO-AUMTS-S2O3
Producent: SECTRON

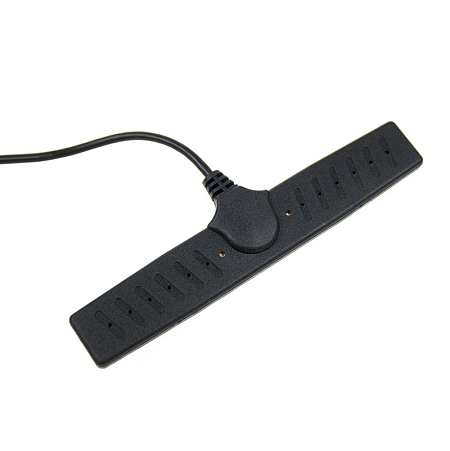

Antenna UMTS/GSM Adhesive U25, 2.5 dBi, open end, RG174/3m

Numer katalogowy : AO-AUMTS-S2O3
Producent: SECTRON

Antenna UMTS/GSM Adhesive U25, 2.5 dBi, open end, RG174/3m

Antenna UMTS/GSM Adhesive U25, 2.5 dBi, unterminated, RG174/3m, open end

19.51 PLN (4.43 €) z VAT (23%) / szt.

bez VAT 16.12 PLN / szt.

Zapytani
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Omnidirectional GSM/UMTS antenna

Omnidirectional antenna with open end or optional connector for receiving GSM/UMTS signals operates in bands 800/1900/2100 MHz. The antenna allows connection to routers, modems or data modules. A cable RG174/U with a length of 3 m is attached to the antenna. Comes with 3M double-sided tape for easy mounting on glass or plastic.

Cable specifications RG174 / U:

The cable labeled RG174 / U is a much cheaper variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. It is mainly used for the frequency range 0 - 1 GHz, it can also be used for higher frequencies, but at the cost of higher attenuation – see the attached attenuation table below. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 ° C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Kabel RG174/U
Złącze bez złącza Maksymalna moc wejściowa 10  W
Polaryzacja Liniowy Wykonanie Zewnętrzny
Temperatura robocza -30 ~ +80  °C Wymiary 108 x 18 x 4  mm
Kierunkowość Dookólna Technologia GSM , UMTS
Waga 44.8  g Zysk 2.5  dBi
VSWR <1.8:1 Kąt nadawania H 360 V 30
Sposób mocowania Przyklejana

19.51 PLN (4.43 €) z VAT (23%) / szt.

bez VAT 16.12 PLN / szt.
