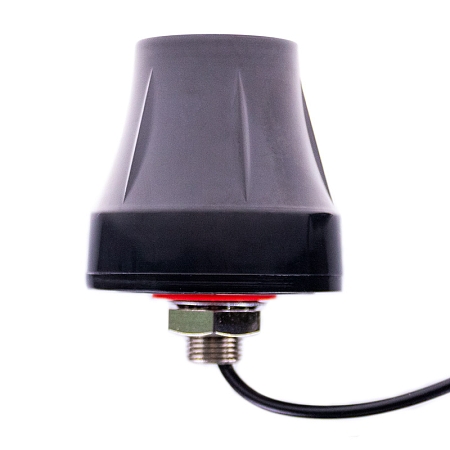

Antenna LTE Screw Mount G058, SMA(m), RG174/20cm, Durable UV resistant ABS

Numer katalogowy : AO-ALTE-G058-020 /Producent: SECTRON

ao-alte-g058-01 ao-alte-g058-03 ao-alte-g058-02 sma-konektor

35.41 PLN (7.39 EUR) bez VAT

Na życzenie Kiedy otrzymam towar?

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.
gwarancja 24 miesięcy
Przedmiot*
Imię i nazwisko*
E-mail*
Zapytanie*
Odsyłając formularz zgadzasz się z zasadami ochrony danych osobowych. .
Twoje imię i nazwisko*
Twój E-mail*
Wysłać na E-mail*
Wiadomość*
Odsyłając formularz zgadzasz się z zasadami ochrony danych osobowych. .

Opis

Omnidirectional GSM/UMTS/LTE/WiFi antenna

Omnidirectional antenna for GSM/UMTS/LTE/WiFi technologies. The antenna operates in bands 700/800/900/1800/1900/2100/2400/2600/2700 MHz. It is suited for modems/routers. Thanks to IP67, this antenna is suitable for outdoor use. It is supplied with 20 cm cable RG174 with SMA (m) connector.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The connection and disconnection of the connectors are guaranteed for up to 500 cycles. Temperature range is -65 °C to +165 °C. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications RG174:

The cable labelled RG174/U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The most common cables of this type have a temperature range of -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC/FAKRA/FME/MCX/MMCX/N/SMA/SMB/SMP/TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS/GSM/WLAN antennas, antenna leads etc. There are also specially modified types of RG174/U cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.

Technical parameters can be found in the attached datasheet.
