Numer katalogowy : AO-ALTE-G016LM
Producent: SECTRON

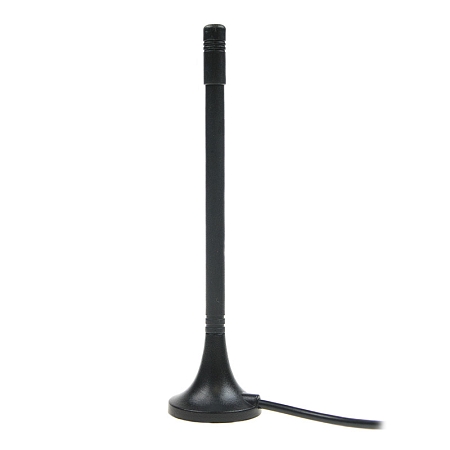

Antenna LTE Magnetic 016L, 2 dBi, MCX(m), RG174/3m

Numer katalogowy : AO-ALTE-G016LM
Producent: SECTRON

Antenna LTE Magnetic 016L, 2 dBi, MCX(m), RG174/3m

Omnidirectional magnetic antenna designed for signal reception in GSM/UTMTS/LTE technology and operates in the bands 700/800/868/1800/1900/2100/2600 MHz.

27.62 PLN (6.27 €) z VAT (23%) / szt.

bez VAT 22.83 PLN / szt.

Zapytani
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Omnidirectional magnetic GSM/UTMTS/LTE antenna

Omnidirectional magnetic antenna designed for signal reception in GSM/UTMTS/LTE technology and operates in the bands 700/800/868/1800/1900/2100/2600 MHz. Is suited for connection to terminals / modems / routers. Thanks to the built-in magnet, it is suitable for placement on any metal surface. The antenna is supplied with a 3 m RG174/U cable terminated with an MCX(m) connector.

Connector specifications MCX:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications RG174 / U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Kabel RG174/U
Złącze MCX(m) Maksymalna moc wejściowa 10  W
Polaryzacja Liniowy Wykonanie Zewnętrzny
Temperatura robocza -40 ~ +85  °C Wymiary 29.4 x 121  mm
Kierunkowość Dookólna Technologia GSM , UMTS , LTE
Waga 46.41  g Zysk 2  dBi
VSWR <2.0:1 Sposób mocowania Magnetyczne
Stopień ochrony IP IP63

27.62 PLN (6.27 €) z VAT (23%) / szt.

bez VAT 22.83 PLN / szt.
