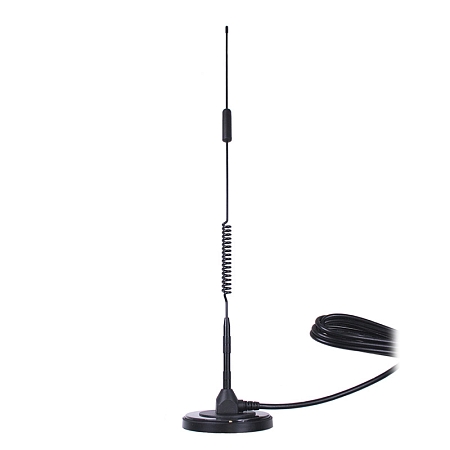

Magnetic antenna GSM/UMTS/LTE
Omnidirectional magnetic antenna is suitable as receiver/transmitter of signal in GSM/UMTS/LTE and operates in bands 700/800/900/1700/1800/1900/2100/2500/2600/2700 MHz. It is suited for modems/routers. The magnetic antenna has a magnetic base. It is supplied with 3m cable with SMA(m) connector.
Connector specifications SMA:
These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.
Cable specifications RG195 / U:
The RG195 coaxial cable is compatible with connectors applicable to cables with 4.95 mm outer diameter. It is mainly used for the frequency range 0-6 GHz. The characteristic impedance is 50 Ω and the operating temperature range -40 °C to + 85 °C. The shortening factor is set at 0.79. The RG195 cable is used in metrology, wireless communications, the automotive industry and also for VHF and UHF applications. It is also often used for creating cable adaptors with plug connectors such as BNC / N / SMA / TNC.
Technical parameters can be found in the attached datasheet.
