Numer katalogowy : AO-AKOM-B062SS
Producent: SECTRON

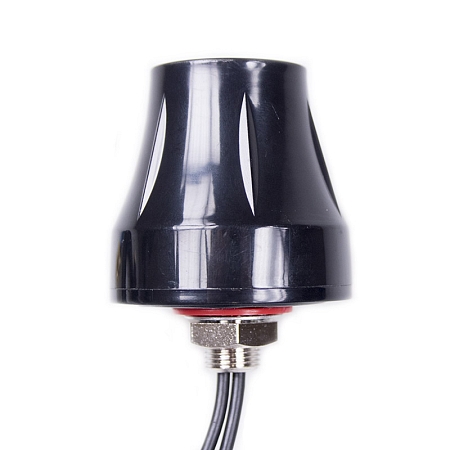

Antenna LTE/GPS Screw Mount B062, 2x SMA(m), 2x RG174/3m

Numer katalogowy : AO-AKOM-B062SS
Producent: SECTRON

Antenna LTE/GPS Screw Mount B062, 2x SMA(m), 2x RG174/3m

Combination omnidirectional antenna, designed for signal reception in GSM/UMTS/LTE/GPS/GLONASS. technologies. The antenna operates in bands 800/900/1700/1800/1900/2100/2600/2700/ 1575.4/1602 MHz.

137.84 PLN (31.31 €) z VAT (23%) / szt.

bez VAT 113.91 PLN / szt.

Na magazynie
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

LTE/GPS combination antenna

Combination omnidirectional antenna, designed for signal reception in GSM/UMTS/LTE/GPS/GLONASS. technologies. The antenna operates in bands 800/900/1700/1800/1900/2100/2600/2700/ 1575.4/1602 MHz. In combination with an amplifier, this active antenna achieves a gain of up to 28 dBi in GPS band. It is suitable for use in cars and other means of transport. Here it is used for navigation and tracking systems, electronic books and other devices. The antenna is supplied with two 3m cables with two SMA(m) connectors.

Cable specifications RG174:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Kabel RG174/U
Złącze SMA(m) Maksymalna moc wejściowa 10  W
Napięcie 2.2 V - 5 V DC Polaryzacja R.H.C.P. , Liniowy
Wykonanie Zewnętrzny Temperatura robocza -30 ~ +90  °C
Wymiary 50 x 48  mm Kierunkowość Dookólna
Szerokość pasma 5  MHz Technologia GSM , GPS
Waga 144.6  g Zysk 0  dBi , 28  dBi
VSWR <2.0:1 Kąt nadawania H 360 V 30
Sposób mocowania Śrubowe

137.84 PLN (31.31 €) z VAT (23%) / szt.

bez VAT 113.91 PLN / szt.
