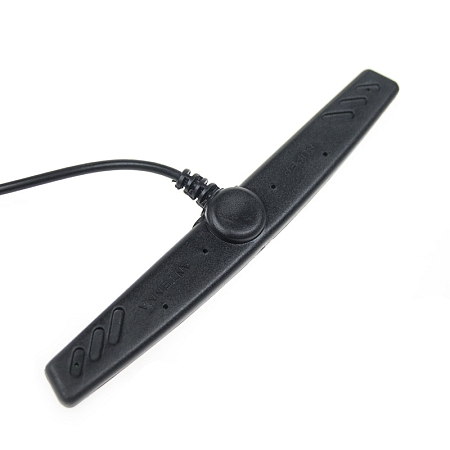

Omnidirectional adhesive LTE antenna
Omnidirectional adhesive antenna is suitable for usage with GSM/UMTS/LTE technologies. The antenna operates on 800/900/1700/1800/1900/2100/2600 MHz frequency. Used in vehicles to connect to cellular modems and routers or signal repeaters. The adhesive antenna is suitable for sticking to glass. The antenna is supplied with 3m cable RG174/U with SMA(m) connector.
Connector specifications SMA:
These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi/2G/3G/LTE/GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.
Cable specifications RG174/U:
The cable labeled RG174/U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC/FAKRA/FME/MCX/MMCX/N/SMA/SMB/SMP/TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS/GSM/WLAN antennas, antenna leads etc.
Technical parameters can be found in the attached datasheet.
