Numer katalogowy : AO-ALTE-G017M
Producent: SECTRON

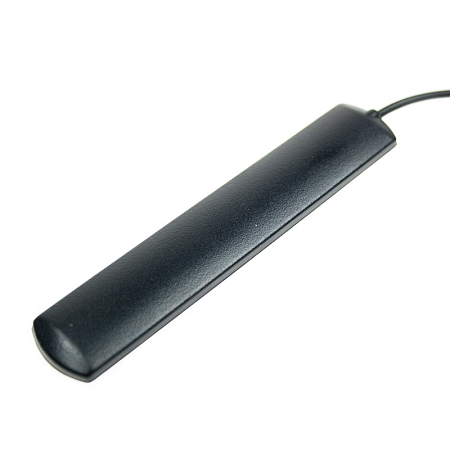

Antenna LTE Adhesive 017L, 2 dBi, MCX(m)90°, RG174/3m

Numer katalogowy : AO-ALTE-G017M
Producent: SECTRON

Antenna LTE Adhesive 017L, 2 dBi, MCX(m)90°, RG174/3m

Omnidirectional adhesive antenna for GSM/UMTS/LTE technologies operates in bands 824-960/1710-2655 MHz.

19.58 PLN (4.43 €) z VAT (23%) / szt.

bez VAT 16.18 PLN / szt.

Zapytani
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Omnidirectional adhesive GSM/UMTS/LTE antenna

Omnidirectional adhesive antenna for GSM/UMTS/LTE technologies operates in bands 824-960/1710-2655 MHz. It is suited for cellular modems and routers. The antenna is supplied with 3m RG174/U cable with MCX(m) 90° connector. It comes with 3M sticker for easy assembly.

Cable specifications RG174/U:

The cable labeled RG174/U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC/FAKRA/FME/MCX/MMCX/N/SMA/SMB/SMP/TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS/GSM/WLAN antennas, antenna leads etc.

Connector specifications MCX(m) 90°:

These are coaxial connectors with latch mechanism. Compatible with SMB connectors, but they are also 30% smaller than SMB connectors. The dimensions of the internal contact and the insulator are the same. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 6 GHz. They are characterized by high reliability and mechanical stability. They are also used as standard connectors in GPS devices, WLAN networks, fixed and mobile communications.

Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Kabel RG174/U
Złącze MCX(m) R/A Maksymalna moc wejściowa 10  W
Polaryzacja Liniowy Wykonanie Zewnętrzny
Temperatura robocza -20 ~ +85  °C Wymiary 115.6 x 21.7  mm
Kierunkowość Dookólna Technologia GSM , UMTS , LTE
Zysk 2  dBi VSWR <2.0:1
Sposób mocowania Przyklejana Orzecznictwo RoHS
Materiał ABS
