Numer katalogowy : AO-ALTE-FPCG155I100
Producent: SECTRON

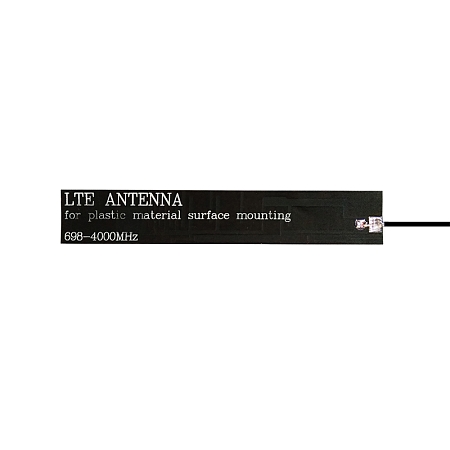

Antenna LTE/5G Embedded FLEX G155, IPEX MHF(f) 90°, 1.13mm Coaxial Cable/100mm

Numer katalogowy : AO-ALTE-FPCG155I100
Producent: SECTRON

Antenna LTE/5G Embedded FLEX G155, IPEX MHF(f) 90°, 1.13mm Coaxial Cable/100mm

Omnidirectional adhesive antenna suitable as a receiver and transmitter of signal in LTE and is also designed for receiving and transmitting 5G signal.

31.48 PLN (7.15 €) z VAT (23%) / szt.

bez VAT 26.01 PLN / szt.

Zapytani
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Omnidirectional adhesive LTE/5G antenna

Omnidirectional adhesive antenna suitable as a receiver and transmitter of signal in LTE and is also designed for receiving and transmitting 5G signal. The antenna operates in bands 700/800/960/1700/2100/2400/2700/3300/3600 MHz. It is suitable for modems and routers. The antenna can be used in M2M as well as in IoT devices and systems. It is supplied with a 100 mm RF cable 1.13 mm, with an IPEX MHF connector. It comes with a 3M double-sided tape for easy assembly.

Cable specifications 1.13 mm:

The coaxial cable is compatible with connectors that are applicable to a 1.13 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / SMA / FME / MCX / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices.


Connector specifications IPEX MHF:

IPEX MHF connectors are compatible with U.FL connectors for applications where there is very little space for connecting / interconnecting RF components. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 9 GHz.


Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Kabel RF 1.13
Złącze IPEX-MHF(f) R/A Maksymalna moc wejściowa 10  W
Napięcie 2.2 – 5 V DC Polaryzacja Liniowy
Wykonanie Zewnętrzny Temperatura robocza -40 ~ +85  °C
Wymiary 85 x 13.8 x 0.2  mm Kierunkowość Dookólna
Technologia LTE Zysk 5.2  dBi
VSWR <3.0:1 Sposób mocowania Przyklejana
Orzecznictwo RoHS Materiał FPC

31.48 PLN (7.15 €) z VAT (23%) / szt.

bez VAT 26.01 PLN / szt.
