Numer katalogowy : AO-AUMTS-G825S
Producent: SECTRON

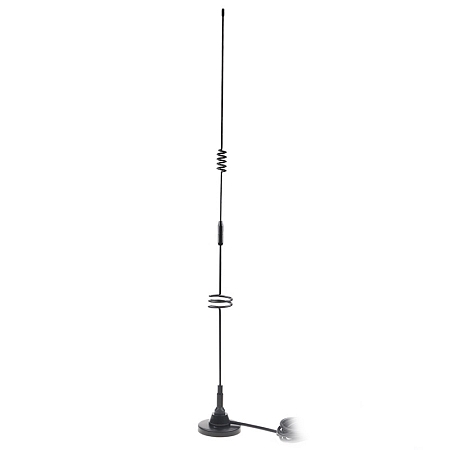

Antenna GSM/UMTS Magnet Mount G825, 7 dBi, SMA(m), RG58/3m

Wyprzedaż
Numer katalogowy : AO-AUMTS-G825S
Producent: SECTRON

Antenna GSM/UMTS Magnet Mount G825, 7 dBi, SMA(m), RG58/3m

Omnidirectional antenna with a magnetic base for receiving/transmitting GSM/UMTS signals. The antenna operates in bands 800/900/1700/1800/1900/2100 MHz.

131.59 PLN (29.97 €) z VAT (23%) / szt.

bez VAT 108.75 PLN / szt.

Na magazynie
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Omnidirectional GSM/UMTS antenna

Omnidirectional antenna for receiving/transmitting GSM/UMTS signals. The antenna operates in bands 800/900/1700/1800/1900/2100 MHz. The antenna is designed for placement on a metal surface and is suitable for connection with modems and routers. The antenna is suited for modems/routers. It is supplied with 5 m cable RG58  with N(m) connector. The antenna base can have a magnetic base.

Connector specifications SMA(m):

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Connector specifications RG58:

The RG58 coaxial cable is compatible with connectors applicable to a 5 mm cable diameter. It is mainly used for the 0-1 GHz frequency range, it can also be used for higher frequencies, but at the cost of higher attenuation. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 75 ° C. This cable is suitable for external WiFi / GPS / GSM antennas. It is also often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / N / SMA / TNC and others.

Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Kabel RG174/U
Złącze SMA(m) Maksymalna moc wejściowa 10  W
Polaryzacja Liniowy Wykonanie Zewnętrzny
Temperatura robocza -40 ~ +85  °C Wymiary 70.2 x 675  mm
Kierunkowość Dookólna Technologia GSM , UMTS
Waga 348  g Zysk 7  dBi
VSWR <2.0:1 Kąt nadawania H 360 V 30
Sposób mocowania Magnetyczne
