Numer katalogowy : AO-ALTE-MG9S5
Producent: SECTRON

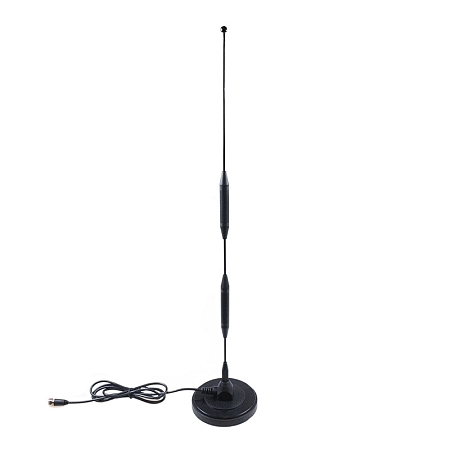

Antenna GSM/UMTS/LTE Magnet Mount 90, 5-9 dBi, SMA(m), RG174U-DS (Dual-shield cable), 5 m

Numer katalogowy : AO-ALTE-MG9S5
Producent: SECTRON

Antenna GSM/UMTS/LTE Magnet Mount 90, 5-9 dBi, SMA(m), RG174U-DS (Dual-shield cable), 5 m

Omnidirectional antenna with a magnetic base for receiving / transmitting GSM/UMTS/LTE signals. The GSM antenna operates in bands 700/800/900/1700/1800/1900/2100/2500/2600/2700 MHz.

77.21 PLN (17.81 €) z VAT (23%) / szt.

bez VAT 63.81 PLN / szt.

Na magazynie
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Omnidirectional antenna GSM/UMTS/LTE

Omnidirectional antenna with a magnetic base for receiving / transmitting GSM/UMTS/LTE signals. The GSM antenna operates in bands 700/800/900/1700/1800/1900/2100/2500/2600/2700 MHz and is designed for placement on a metal surface and is suitable for connection with modems and routers. The antenna is supplied with a 5 m RG174 / U - DS cable, with an SMA (m) connector.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications RG174 / U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Kabel RG174/U
Złącze SMA(m) Maksymalna moc wejściowa 10  W
Polaryzacja Liniowy Wykonanie Zewnętrzny
Temperatura robocza -40 ~ +105  °C Wymiary 81 x 415  mm
Kierunkowość Dookólna Technologia GSM , UMTS , LTE
Zysk 5-9  dBi VSWR <1.8:1
Kąt nadawania H 360 V 30 Sposób mocowania Magnetyczne

77.21 PLN (17.81 €) z VAT (23%) / szt.

bez VAT 63.81 PLN / szt.
