Numer katalogowy : AO-AKOM-41O5
Producent: SECTRON

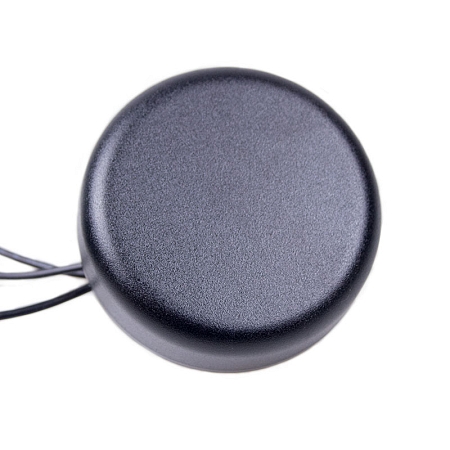

Antenna GSM/UMTS/GPS/WiFi Mounting R41, 3x RG174/5m, open

Numer katalogowy : AO-AKOM-41O5
Producent: SECTRON

Antenna GSM/UMTS/GPS/WiFi Mounting R41, 3x RG174/5m, open

Combined mounting antenna for receiving signal in GSM/UMTS/WIFI/GPS technologies. The antenna operates in 900/1800/2100/2400/5800/1575.42 MHz bands.

267.68 PLN (60.81 €) z VAT (23%) / szt.

bez VAT 221.22 PLN / szt.

Na magazynie
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Combined GSM/UMTS/WIFI/GPS antenna

Combined mounting antenna for receiving signal in GSM/UMTS/WIFI/GPS technologies. The antenna operates in 900/1800/2100/2400/5800/1575.42 MHz bands. In combination with an amplifier, this active antenna achieves a total gain of 30 dBi in a GPS band. Thanks to the ability to operate with the mentioned technologies, the antenna is perfect for use in public transport and other means of transport. The antenna has three 5 m long RG174 cables with loose ends.

Cable specifications RG174/U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.


Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Kabel RG174/U
Złącze bez złącza Maksymalna moc wejściowa 10  W
Napięcie 3-5.5 V DC Polaryzacja R.H.C.P. , Liniowy
Wykonanie Zewnętrzny Temperatura robocza -20 ~ +60  °C
Wymiary 80 x 25  mm Kierunkowość Dookólna
Technologia GSM , GPS , UMTS , WIFI Waga 281.36  g
Zysk 0  dBi , 30  dBi , 2  dBi VSWR <2.0:1
Kąt nadawania H 360 V 30 Sposób mocowania Śrubowe

267.68 PLN (60.81 €) z VAT (23%) / szt.

bez VAT 221.22 PLN / szt.
