Numer katalogowy : AO-AUMTS-G402S
Producent: SECTRON

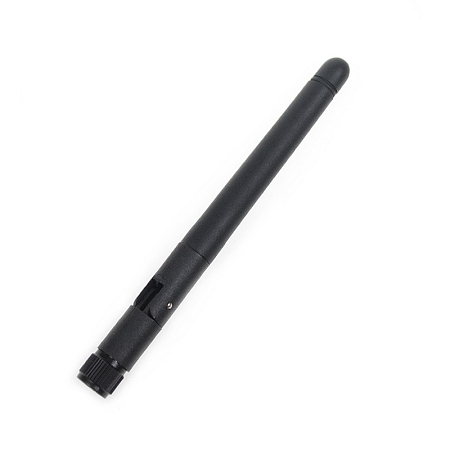

Antenna GSM/UMTS Connector Mount G402, 90°/180°, 2 dBi, SMA(m)

Numer katalogowy : AO-AUMTS-G402S
Producent: SECTRON

Antenna GSM/UMTS Connector Mount G402, 90°/180°, 2 dBi, SMA(m)

Omnidirectional antenna is suitable as receiver of signal in GSM/UMTS. The antenna operates in bands 900/1700/1800/1900 MHz.

15.53 PLN (3.58 €) z VAT (23%) / szt.

bez VAT 12.83 PLN / szt.

Na magazynie
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Omnidirectional GSM / UMTS antenna

Omnidirectional antenna with SMA (m) connector is suitable as receiver of signal in GSM and UMTS. The antenna operates in bands 900/1700/1800/1900 MHz. It is suited for modems and routers or signal repeaters.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Technical parameters can be found in the attached datasheet.


Parametry

Impedance 50  Ohm Kabel N/A
Złącze SMA(m) Maksymalna moc wejściowa 10  W
Polaryzacja Liniowy Wykonanie Zewnętrzny
Temperatura robocza -40 ~ +85  °C Wymiary 85.7 x 33.2 x 10  mm , 108 x 10  mm
Kierunkowość Dookólna Technologia GSM , UMTS
Waga 9.55  g Zysk 2  dBi
VSWR <2.5:1 Kąt nadawania H 360 V 30
Sposób mocowania Wtyk

15.53 PLN (3.58 €) z VAT (23%) / szt.

bez VAT 12.83 PLN / szt.
