Numer katalogowy : AO-AUMTS-G121C
Producent: SECTRON

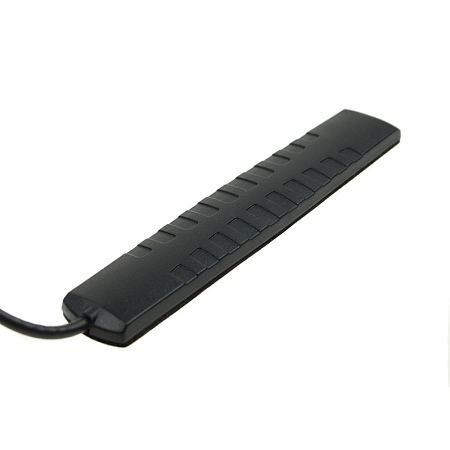

Antenna GSM/UMTS Adhesive G121, 2 dBi, MMCX(m) 90°, RG174/2m

Numer katalogowy : AO-AUMTS-G121C
Producent: SECTRON

Antenna GSM/UMTS Adhesive G121, 2 dBi, MMCX(m) 90°, RG174/2m

Omnidirectional adhesive antenna for GSM technology. The antenna operates in frequency bands 900/1800/2100 MHz.

23.65 PLN (5.37 €) z VAT (23%) / szt.

bez VAT 19.54 PLN / szt.

Na magazynie
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Omnidirectional adhesive GSM antenna

Omnidirectional adhesive antenna for GSM technology. The antenna operates in frequency bands 900/1800/2100 MHz. The antenna is suited for modems/routers. It is supplied with 2 m cable with MMCX (m) connector.

Connector specifications MMCX:

These are coaxial connectors with a latch mechanism, which are compatible with MCX connectors but have a smaller size. The characteristic impedance of the connector is 50 Ohm and the working frequency range up to 6 GHz. They are characterized by high reliability and mechanical stability. They are also used as standard connectors in GPS devices, WLAN networks, fixed and mobile communications.

Cable specifications RG174 / U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Kabel RG174/U
Złącze MMCX(m) Maksymalna moc wejściowa 10  W
Polaryzacja Liniowy Wykonanie Zewnętrzny
Temperatura robocza -40 ~ +85  °C Wymiary 113 x 19.8 x 6.2  mm
Kierunkowość Dookólna Technologia GSM
Waga 35.96  g Zysk 2  dBi
VSWR <2.0:1 Kąt nadawania H 360 V 30
Sposób mocowania Przyklejana

23.65 PLN (5.37 €) z VAT (23%) / szt.

bez VAT 19.54 PLN / szt.
