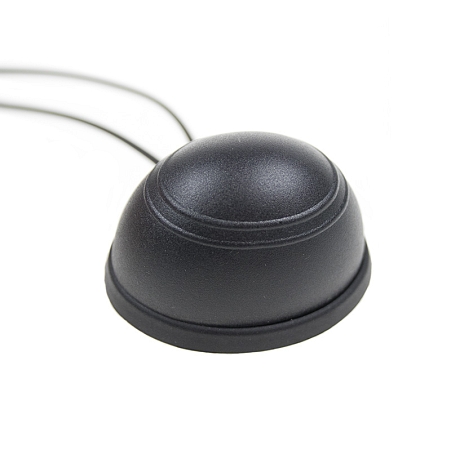

Antenna GSM/GPS Screw Mount R32, FME(f)/SMA(m), 2x RG174/5m

Numer katalogowy : AO-AKOM-CAP /Producent: SECTRON

ao-akom-cap-gps-antenna-sectron-01 ao-akom-cap-gps-antenna-sectron-04 ao-akom-cap-gsp-antenna-sectron-05 ao-akom-cap-gps-antenna-sectron-03 ao-akom-cap-gps-antenna-sectron-02

120.57 PLN (25.84 EUR) bez VAT

Na magazynie Kiedy otrzymam towar?

gwarancja 24 miesięcy
Przedmiot*
Imię i nazwisko*
E-mail*
Zapytanie*
Odsyłając formularz zgadzasz się z zasadami ochrony danych osobowych. .
Twoje imię i nazwisko*
Twój E-mail*
Wysłać na E-mail*
Wiadomość*
Odsyłając formularz zgadzasz się z zasadami ochrony danych osobowych. .

Opis

Omnidirectional antenna for GSM/GPS

Omnidirectional antenna for GSM/GPS. The antenna operates in bands 900/1800/2100/1575.42 MHz. The antenna reaches up to 30 dBi gain when combined with an amplifier in bands GPS. The antenna is suitable for cars. The antenna is supplied with two 5m cables with FME  and SMA connectors.

Cable specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The connection and disconnection of the connectors is guaranteed for up to 500 cycles. Temperature range is -65 °C to +165 °C. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications FME:

FME coaxial connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 2 GHz. Thanks to their compact size and long longevity, the FME connectors are used in the field of mobile communications as well as for GSM antennas. They are suitable for installation in vehicles as well.

Cable specifications RG174/U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.


Technical parameters can be found in the attached datasheet.

Parametry

Impedancja: 50 Ohm Kabel: RG174/U
Złącze: FME(ż) / SMA(m) LNA Zysk: 30 dB
Maksymalna moc wejściowa: 10 W max. Napięcie zasilające: 2.7 - 5.5 V DC
Polaryzacja: Liniowa / R.H.C.P. Wykonanie: Zewnętrzny
Temperatura pracy: -30 °C - +90 °C Wymiary: 30 x 59 x 44 mm
Kierunkowość: Dookólna Technologia: GSM / GPS
Waga: 173.45 g VSWR: <2.0:1
Kąt nadawania: H-360°. V-30° Zysk: 1.3 dBi / 2 dBi
Sposób mocowania: Śrubowe
