Numer katalogowy : AP-AGNSS-34S
Producent: SECTRON

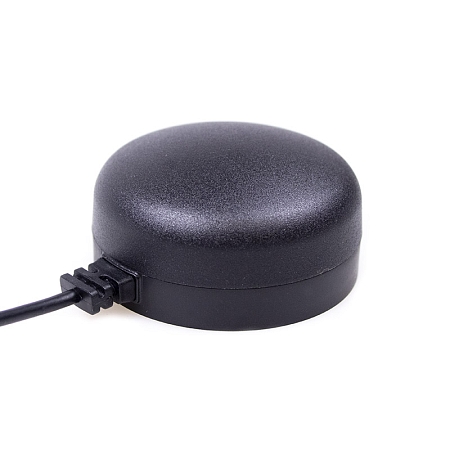

Antenna GPS/GLONASS Magnet Mount R34C, SMA(m), RG174/3m

Numer katalogowy : AP-AGNSS-34S
Producent: SECTRON

Antenna GPS/GLONASS Magnet Mount R34C, SMA(m), RG174/3m

Directional antenna for GPS/GLONASS. technologies. The antenna operates in band 1575.42/1602 MHz.

84.66 PLN (19.53 €) z VAT (23%) / szt.

bez VAT 69.97 PLN / szt.

Na magazynie
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Directional GPS and GLONASS  antenna

Directional antenna for GPS and GLONASS technologies and operates in band 1575.42/1602 MHz. The magnetic antenna reaches up to 30 dBi gain when combined with an amplifier. It is suitable for the the use in navigation, tracking devices, electronic logbooks and other devices. GPS/Glonass antenna is supplied with 3 m cable with SMA(m) connector.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications RG174 / U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Kabel RG174/U
Złącze SMA(m) Maksymalna moc wejściowa 10  W
Polaryzacja Liniowy Wykonanie Zewnętrzny
Temperatura robocza -30 ~ +90  °C Wymiary 52.4 x 27  mm
Kierunkowość Kierunkowa Technologia GPS , GLONASS
Waga 70.35  g Zysk 1.56  dBi , 1.8  dBi
VSWR <2.0:1 LNA Zysk 28.2  dB , 28.5  dB
Kąt nadawania H 40 V 30 Sposób mocowania Magnetyczne
Orzecznictwo ISO 14001 , ISO 9001

84.66 PLN (19.53 €) z VAT (23%) / szt.

bez VAT 69.97 PLN / szt.
