Numer katalogowy : AP-AGNSS-A057M
Producent: SECTRON

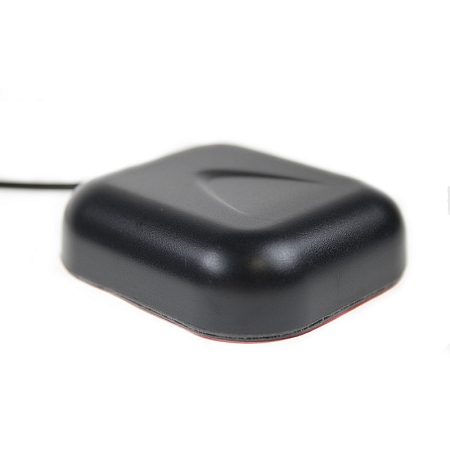

Antenna GPS/GLONASS Adhesive A057, MCX(m), RG174/3m

Numer katalogowy : AP-AGNSS-A057M
Producent: SECTRON

Antenna GPS/GLONASS Adhesive A057, MCX(m), RG174/3m

Omnidirectional adhesive antenna for GPS and GLONASS. The antenna operates in two bands 1545.72 and 1602 MHz.

50.41 PLN (11.63 €) z VAT (23%) / szt.

bez VAT 41.66 PLN / szt.

Na magazynie
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Omnidirectional antenna for GPS and GLONASS

Omnidirectional adhesive antenna for GPS and GLONASS. The antenna operates in two bands, 1545.72 and 1602 MHz. The antenna reaches up to 26-48 dBi gain when combined with an amplifier. The antenna is suitable for cars and the others vehicles. The antenna is supplied with 3 m cable RG174/U with MCX(m) connector. Comes with 3M double-sided tape for easy assembly.

Connector specifications MCX:

These are coaxial connectors with latch mechanism. Compatible with SMB connectors, but they are also 30% smaller than SMB connectors. The dimensions of the internal contact and the insulator are the same. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 6 GHz. They are characterized by high reliability and mechanical stability. They are also used as standard connectors in GPS devices, WLAN networks, fixed and mobile communications.

Cable specifications RG174 / U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The most common cables of this type have a temperature range of -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc. There are also specially modified types of RG174/U cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.

Technical parameters can be found in the attached datasheet.



Parametry

Impedance 50  Ohm Kabel RG174/U
Złącze MCX(m) Maksymalna moc wejściowa 10  W
Napięcie 2.2 V - 5 V DC Polaryzacja R.H.C.P.
Wykonanie Zewnętrzny Temperatura robocza -40 ~ +85  °C
Wymiary 52.5 x 59.2 x 15  mm Kierunkowość Dookólna
Szerokość pasma 5  MHz Technologia GPS , GLONASS
Waga 74.15  g Zysk 26  dBi , 48  dBi
VSWR <2.0:1 Kąt nadawania H 360 V 30
Sposób mocowania Przyklejana
