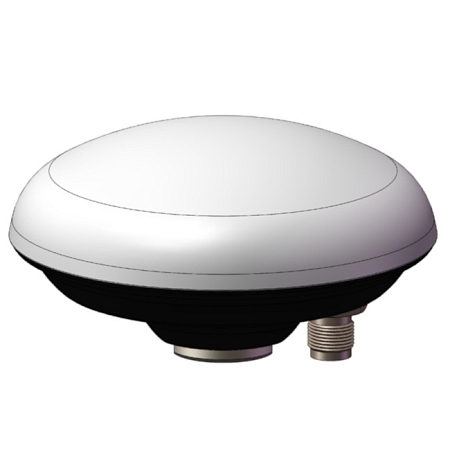

Directional GNSS antenna
Directional GNSS antenna with 4 dBi gain operates in the frequency range 1176.45‐1575.42 / 1201‐605.375 / 1268.52‐1589.742 MHz. It supports a range of GNSS technologies such as GPS / GLONASS / COMPASS / Galileo and even supports the L5 GPS band. The antenna is equipped with a TNC connector. The robust housing and degree of protection IP67 ensure high performance even in the most demanding working conditions. The antenna in combination with the amplifier achieves a high overall gain of up to 40 dB.
Specifications connector TNC:
TNC coaxial connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency range up to 11 GHz. TNC connectors are used, for example, to connect wireless WLAN devices, test equipment and GSM / GPS / Wi-Fi antennas.
Technical parameters can be found in the attached datasheet.
