Numer katalogowy : AO-A868-PTI03
Producent: SECTRON

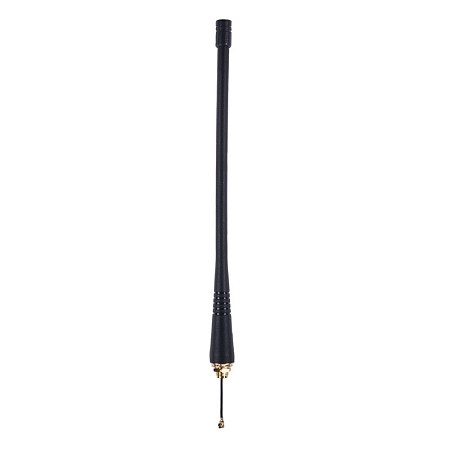

Antenna 868 MHz Flexible Whip PIGTail, IPEX MHF1(f) RA, 1.13mm Coaxial Cable/30mm

Numer katalogowy : AO-A868-PTI03
Producent: SECTRON

Antenna 868 MHz Flexible Whip PIGTail, IPEX MHF1(f) RA, 1.13mm Coaxial Cable/30mm

The PIGTail rod antenna allows the use of the 868 MHz band. It is ideal for connecting to your wireless IoT device or for increasing the range of the remote control to the gate operators.

65.93 PLN (15.21 €) z VAT (23%) / szt.

bez VAT 54.49 PLN / szt.

Na magazynie < 10 szt.
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Rod antenna 868 MHz PIGTail

The PIGTail rod antenna allows the use of the 868 MHz band. It is ideal for connecting to your wireless IoT device or for increasing the range of the remote control to the gate operators. It is also used in various meters such as electricity meters and temperature sensors. The antenna includes a coaxial cable LP-068 with a diameter of 1.13 mm, the cable length is 30 mm and is terminated with an IPEX MHF1 (f) RA connector.

Specifications connector IPEX MHF

IPEX MHF connectors are compatible with U.FL connectors for applications where there is very little space for connecting / interconnecting RF components. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 9 GHz.

Specifications cable LP-068:

The LP-068 coaxial cable is compatible with connectors that are applicable to a 1.13 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / SMA / FME / MCX / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices. There are also specially modified types of RF 1.37 cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.

Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Kabel RF 1.13
Złącze IPEX-MHF(f) R/A Maksymalna moc wejściowa 10  W
Polaryzacja Liniowy Wykonanie Zewnętrzny
Temperatura robocza -30 ~ +60  °C Wymiary 12 x 169  mm
Kierunkowość Dookólna Technologia ISM
Waga 10.86  g VSWR <2.4:1
Sposób mocowania Śrubowe Orzecznictwo RoHS
